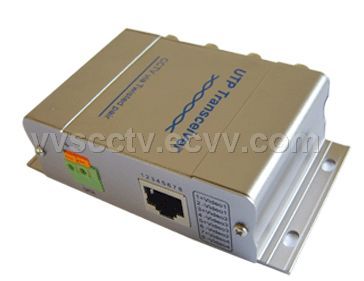

Balun (LLT-204)

Detailed Product Description

Spec : 4CH Passive (OR 3ch video+1ch date)

* Video: Frequency respons: DC-6Mhz Conmmon-mode/Differential-mode

* Rejection: 15Khz 6Mhz 60dB typ

* Audio/data: YES

* Power: NO

* Impedance: Coax, male BNC: 75ΩUTP(Screwless)Terminal Block or UTP RJ45 Data Connector: 100Ω

* Wire type :

- One Unshielded Twisted Pair 24-16AWG(0. 5-1. 31mm)

- Per video signal: DC Loop Resistance 52 ohms per 1, 000 ft (18 ohms per 100m)

* Control NO: UTP Port RJ45

* Dimensions(mm) 103*70*30

* Weigth(g) 170

* Environment

-Temperature: -10~+50℃

- Humidity: 0~95%

Place of Origin:	Shenzhen in China
Model No:	LLT-204
Payment Terms:	T/T(Bank Transfer),Western Union,
Package:	Standard Packing/Safety Packing
Delivery Time:	3-7
