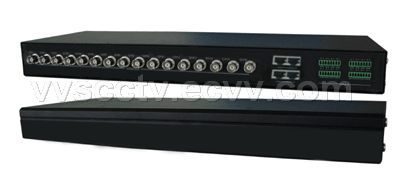

Balun (LLT-216)

Detailed Product Description

Model(LLT-)	LLT-216
Spec	16CH Passive
Video	Frequency respons: DC-6Mhz Common-mode/Differential-mode Rejection: 15khz –6Mhz 60dB typ
Audio/data	NO
Power	NO
Impedance	Coax,male BNC:75ΩUTP(Screwless)Terminal Block or UTP RJ45 Data Connector:100Ω
Wire type	One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)
Surge suppression	-----------
Control	NO
UTP Port	RJ45 AND Terminal Block
Dimensions(mm)	43218550
Weigth(g)	2200
Environment	Temperature:-10~+50℃ Humidity:0~95%

Place of Origin:	Shenzhen in China
Model No:	LLT-216
Payment Terms:	T/T(Bank Transfer),Western Union,
Package:	Standard Packing/Safety Packing
Delivery Time:	3-7
