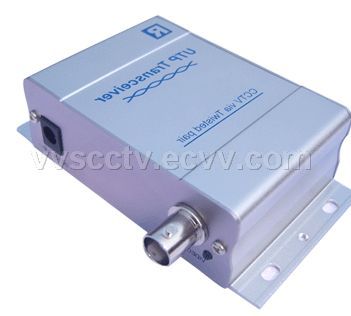

Balun (LLT-301T/R)

Detailed Product Description

Model(LLT-)	LLT-301R/T
Spec	1CH Active
Video	Frequency respons:DC-6Mhz Conmmon-mode/Differential-mode Rejection:15Khz 6Mhz 60dB typ
Audio/data	NO
Power	12VDC
Impedance	Coax,male BNC:75ΩUTP(Screwless)Terminal Block or UTP RJ45 Data Connector:100Ω
Wire type	One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)
Surge suppression	6000V 1.2μ S*5μ S
Control	Brightness and Sharpness
UTP Port	Terminal Block
Dimensions(mm)	1037030
Weigth(g)	100
Environment	Temperature:-10~+50℃ Humidity:0~95%

Place of Origin:	Shenzhen in China
Model No:	LLT-301T/R
Payment Terms:	T/T(Bank Transfer),Western Union,
Package:	Standard Packing/Safety Packing
Delivery Time:	3-7
