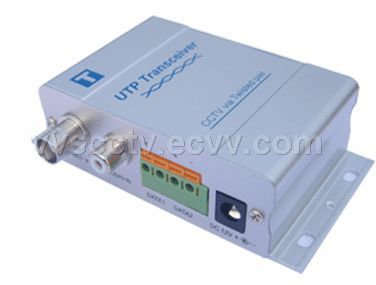

Balun (LLT-302R/T)

Detailed Product Description

Model(LLT-)	LLT-302R/T
Spec	1CH Active Video/data/Transceiver
Video	Frequency respons: DC-6Mhz Conmmon-mode/Differential-mode Rejection: 15Khz 6Mhz 60dB typ
Audio/data	YES(Audeo 14dB)
Power	12VDC
Impedance	Coax, male BNC: 75ΩUTP(Screwless)Terminal Block or UTP RJ45 Data Connector: 100Ω
Wire type	One Unshielded Twisted Pair 24-16AWG(0. 5-1. 31mm) Per video signal: DC Loop Resistance 52 ohms per 1, 000 ft(18 ohms per 100m)
Surge suppression	6000V 1. 2μ S*5μ S
Control	Brightness and Sharpness
UTP Port	Terminal Block
Dimensions(mm)	1037030
Weigth(g)	110
Environment	Temperature: -10~+50℃ Humidity: 0~95%

Place of Origin:	Shenzhen in China
Model No:	LLT-302R/T
Payment Terms:	T/T(Bank Transfer),Western Union,
Package:	Standard Packing/Safety Packing
Delivery Time:	3-7
