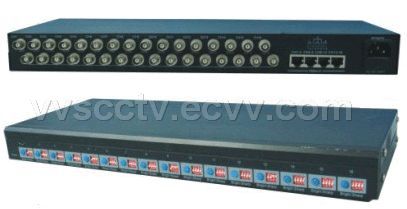

Video Receiver (LLT-1610R)

Next Product

Detailed Product Description

Model	LLT-1610R
Spec	16 CH active
Video	Frequency respons: DC-6 Mhz conmmon-mode / Differential-mode rejection: 15 Khz 6 Mhz 60 dB type
Audio / data	No
Power	12 VDC
Impedance	Coax, male BNC: 75 Ω UTP (Screwless) Terminal block or UTP RJ45 data connector: 100 Ω
Wire type	One unshielded twisted pair 24-16 AWG (0.5 - 1.31 mm) per video signal: DC Loop resistance 52 ohms per 1,000 ft(18 ohms per 100 m)
Surge suppression	6000 V 1.2 μS * 5μS
Control	Brightness and sharpness
UTP port	RJ45 (1610J Terminal block)
Dimensions(mm)	432 * 185 * 44
Weigth (g)	2200
Environment	Temperature: -10℃ ~ +50℃ Humidity: 0 ~ 95%

Place of Origin:	Shenzhen in China
Model No:	LLT-1610R
Payment Terms:	T/T(Bank Transfer),Western Union,
Package:	Standard Packing/Safety Packing
Delivery Time:	3-7
