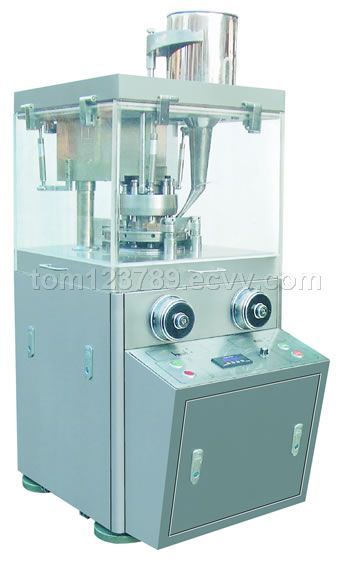

Calcium Making Machine (ZP7)

This is a singe-pressure, automatic-rotation continuous tablet extruder, newly developed in our factory, used for the production of normal-or abnormal-shaped tablets out of granular materials, applicable mainly in the pharmaceutical industry and in the chemical, food, electronic, plastic and powder metallurgical industries as well.

Characteristics:
The machine is fully enclosed. The material of the cover is stainless steel. Meeting G. M. P standard. It has transparent windows so that press condition can be observed clearly and the window can be observed clearly and the window can be opened. Cleaning and maintenance is easier. This machine has big compression. And this machine can produce irregular tablets, ring shape tablets and plain tablets. It is especially suitable to use in various and small-batch production. Electrome chanically integrated product. All of the control unit and the adjusmlent unit are on one side of the machine, and easier for operating. An overloading protection unit is included in the system to avoid the damage of the machine. ZP7 equipped with oil-soak lubrication driving system of this machine, and under the air-tightly, so that prevent cross conta-mination and extending the working life of the machine

Model: ZP7
* Die amount: 9Ps7Ps
* Max. Pressure: 60KN
* Max. Diameter: φ13mm
* Max. Depth: 15mm
* Max. Thickness: 6mm
* Rotated quantity: 35(r/min)
* Production capacity: 6400-19000(P/h) 5000-14500(P/h)
* Motor: 1.1KW 380V 50HZ 910(r/min)
* Overall dimensions: 794X699X1132(mm)
* Weight: 400(kg)
