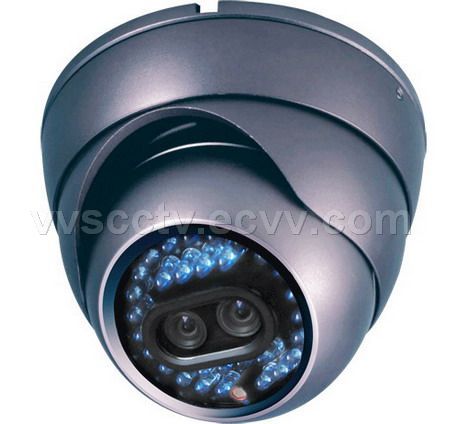

Dome Camera (VVS-9040H)

1/3" SONY CCD and1/3" SONY CCD ,One for day,one
for night, Longer working life than one CCD,quality
picture,and IR distance (25-35M)

Vandalproof and waterproof ,IP65

Dual MTV 6mm or 3.6mm IR lens ,have a wide view angle.
Exquisite design ,precise circuit & structure ,incarnated
the highest technology

Model VVS-9040H

Signal System PAL/NTSC

Image Sensor 1/3" SOYN CCD(Color) 1/3" SOYN CCD(B / W)

Horizontal Resolution 480 TV Lines 600 TV Lines

Lens MTV 3.6 mm IR Lens

Minimum Illumination 0.5Lux/F1.2(LED OFF); 0Lux ( LED ON)

NO. of Effective Pixels PAL: 752(H)X582(V); NTSC: 768(H)X494(V)

S/N Ratio More than 52dB

Electronic Shutter 1/50~1/100,000sec(PAL),1/60~1/100,000sec(NTSC)

White Balance Automatic

AGC/BLC Automatic

IR series distance 25~30 Meter

View angle 60°

LED wave length 30 units 850nM Infrared LED

Average life 20000hrs,warranty life: 6000hrs

Water resistance IP65

Video Output Composite Video Output(1.0Vp-p 75ΩTerminated)

Power Supply DC 12V 450mA(+/-10%)

Operation Temperature -20℃ to +50℃

Body Aluminum

Weight 1000g
