Hydi Metal Products Co., Ltd

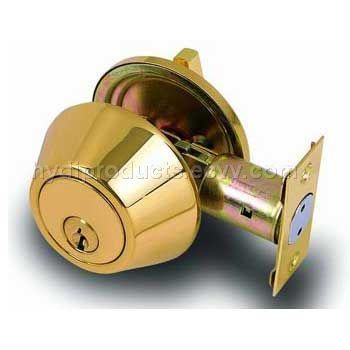

Dead Bolt Door Lock Deadbolt

Detailed Product Description

SPECIFICATIONS
Applications: Residential single and multi-family use.
Certifications: ANSI A156.5, 2001 Grade 3.
Exposed Trim: Wrought brass or stainless steel.
Keying: 5-pin tumbler KW1 keyway with two nickel brass keys. Various keyways selectable. See our website for more keyways and key bows detail.
Door Range: 1-3/8" to 1-3/4" (35mm to 45mm) standard.
Backset: Adjustable 2-3/8" or 2-3/4" backset.
Additional Info: See our website for more finish, design and functions abailable.
STANDARD FEATURES
Concealed screws on the outside.
Wrought steel lock housing with chromated finish for better corrosion resistance.
Three-piece assembly for fast easy installation.
Meets 200,000 cycles ANSI Grade 3 requirements.
LATCHES & STRIKES
Latches: 1" x 2-1/4" (25mm x 57mm). 1" (25mm) throw standard.
Latch Bolt: 1" throw, Chrome plated.
Strikes: 1-1/8" x 2-3/4"(28mm x 70mm) square corner standard. Round corner available.
Face plates: 1" x2-1/4" square corner standard. Round corner available.
Place of Origin:Guangdong Zhongshan in China
Model No:D101-PB-ET
Brand Name:HYDI
Delivery Time:45~50
