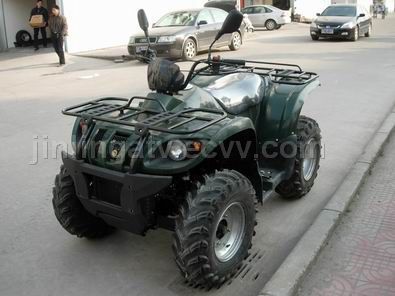

ATV (500A)

The ATV is with EEC and EPA.

1) Dimension:

* Length: 80 inches

* Width: 46 inches

* Height: 47 inches

2) Net weight: 650 Lbs

3) Gross weight: 730 Lbs

4) Engine: 499cc - water cooled, 4 strokes, CVT belt fully automatic, Single cylinder, and extra lower gear

5) Lubrication: pressure splash

6) Cylinder bore diameter: 92 mm (3.63")

7) Piston stroke: 75 mm (2.96")

8) Displacement: 498.6cm³

9) Compression ratio: 10.2 : 1

10) Carburetor: Single chamber

11) Gear Shifting: R, N, D, L (Reverse, Neutral, Drive, Low Gear)

12) Max power (kw/rpm): 24 kw / 6800 rpm / min

13) Max yorque (Nm/rpm): 38 Nm / 5000 rpm / min

14) Ignition: 12V CDI

15) Start: Electric with a set of keys

16) Brakes: Front and rear disc brake

17) Others: Big radiator and fan, front and rear independent suspension

18) Conveyance: QTY / Container: 10 units / 20'; 24 units / 40'
