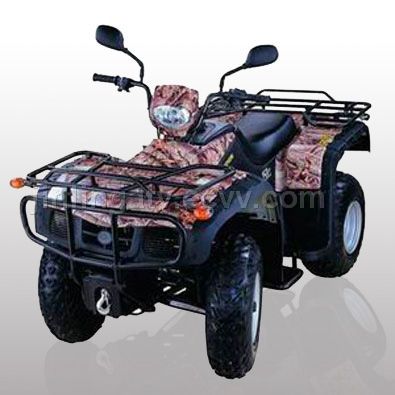

ATV (250D)

The ATV is with EEC.

Engine:
1) Engine: 250 cc, vertical, single cylinder, 4-stroke, air-cooled, SOHC
2) Max. power: 9.9 kw / 7,000 rpm
3) Max. torque: 14 N.m / 5,500r pm
4) Compression ratio: 8.7:1
5) Ignition: CDI
6) Start: electric start
7) Battery: 12V / 14Ah
8) Transmission: CVT / 5-gear
9) Final drive: shaft-driven

Chassis:
1) Front suspension: double A-arm hydraulic shock absorber
2) Rear suspension: single central hydraulic shock absorber
3) Front brake: dual hydraulic disc brake
4) Rear brake: single drum brake
5) Front tire: AT 23 x 7-10
6) Rear tire: AT 22 x 10-10

Specifications:
1) Product dimensions (L x W x H): 1,880 x 1,040 x 1,140 mm
2) Wheelbase: 1,160 mm
3) Seat height: 865 mm
4) Turn radius: 2,900 mm
5) Ground clearance: 190 mm
6) Head light: 35w / 35w
7) Brake / tail light: 21w / 5w
8) Color: blue / red / green / black / orange / camouflage
9) Dry weight: 280 kg
10) EEC approval number: E4*2002/24*0563*00

Outer packing: 1pc/ctn
Carton dimensions: 2,220 x 1,170 x 850 mm

Conveyance:

Qty/40' FCL: 24pcs
