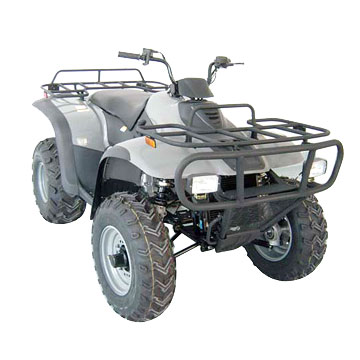

ATV EW-260
Specifications:
1) Fuel capacity: 14.2L (3.75gal)
2) Engine oil capacity: 1.4L (1.23qt)
3) Ground clearance: 18.3mm (7.2")
4) Dimensions: 1170 (46") x 2096 (82.5") x 1170mm (46")
5) Wheel base: 1265mm (49.75")
6) Turn radius: 3277mm (129")
7) Dry weight: 280kg (616lbs)
8) Front rack:18kg (40lbs)
9) Rear rack: 36kg (80lbs)
10) Load capacity (combined rider & playload): 150kg (350lbs)
11) Tongue weight: 11kg (25lbs)
12) Tow capacity: 200kg (450lbs)
13) Drive system: CVT
14) Front tire: 24 x 8-12
15) Rear tire: 24 x 11-10
16) Tire pressure(front): 27.6kp 4psi
17) Tire pressure(rear): 20.7kp 3psi
18) Brake system
19) Service brake front brake hydraulic disc
20) Rear brake
21) Parking brake all wheel hydraulic lock
22) Auxiliary brake rear brake hydraulic disc
Engine
1) Engine type: lh170mm, 4 stroke, single cylinder, sohc
2) Bore x stroke: 70 x 66.8mm
3) Displacement: 257cm3
4) Starter system: electric starter
5) Engine cooling: liquid-cooled
6) Lubrication system: wet sump
7) Carburetor: CVK30
8) Ignition: T.C.I
9) Spark plug type: DR & EA (NGK)
Electrical equipment:
1) Battery: 12V, 14Ah
2) Headlight: 35 / 35W
3) Brake/tail light: 21 / 5W
4) Reverse indicator light: 1W
5) Fan indicator light: 1W
6) High beam light: 1W
7) Neutral position light: 1W
8) Heat alarm light: 1W
Conveyance:Qty/40' FCL: 27pcs
| Place of Origin: | China |
| Model No: | EW-260 |
| Brand Name: | EW |
| Minimum Order: | Negotiated |
| Package: | steel crate |
| Delivery Time: | Negotiated |
