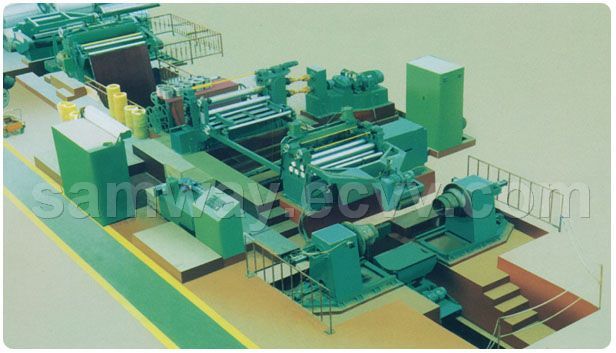

Samway high speed uncoiling-slitting-recoiling line
This line is used for coil with different specifications, through uncoiling-slitting-recoiling to needed width coil for the application of all kinds of stamping line.
This line is reasonable in layout, easy operation, high level of automation, high productivity which could processing all kinds of CR and HR coil, silicon coil, stainless coil, colored coil, aluminum coil, galvanize coil or painted coil. This line is broadly applying in metal plate processing industry, like car, container, household appliance, packing, construction material, etc. This line is composed of coil car, uncoiler, slitter, scrap winder, shearer cutting coil head or tail, tension pad and recoiler, etc. as well as pendulum middle bridge, pinch device, steering device. This line is an auto coil processing equipment which integrate mechanical, electrical, hydraulic, pneumatic all together.
main technical parameter
model/name 2?300 2?600 3?300 3?600
Coil thickness (mm) 0.3-2 0.3-2 0.5-3 0.5-3
Coil width(mm) 600-1300 600-1600 600-1300 600-1600
slitting strips 2-30 2-30 2-15 2-15
Strip width precision ?.1 ?.1 ?.15 ?.15
line speed 10-120 10-120 10-120 10-120
coil weight(T) 10 15 20 30
Coil I.D.(mm) 508 508 508,610 508,610
Recoiling I.D.(mm) 508 508 508 610
Main shaft Dia 205 240 240 240
| Place of Origin: | Jiangsu Wuxi in China |
| Model No: | Slitter line cut to length line |
| Brand Name: | samway |
| Supply Ability: | 256 |
| Package: | FULL CONTAINER |
| Delivery Time: | 30-60 |
