Valve seats boring machine

Prev Product

Next Product

Detailed Product Description

This machine tool suits the needs of various cylinder cover for every
engine. It adopts the air-floating work table. When equipped with all
sorts of tools, it can manufacture the gas valve seats hole for cylinder
cover with various angles. When equipped with boring-drilling tools,
it can bore drills. It is widely used to ream the pipe seats holes for
gas valves.

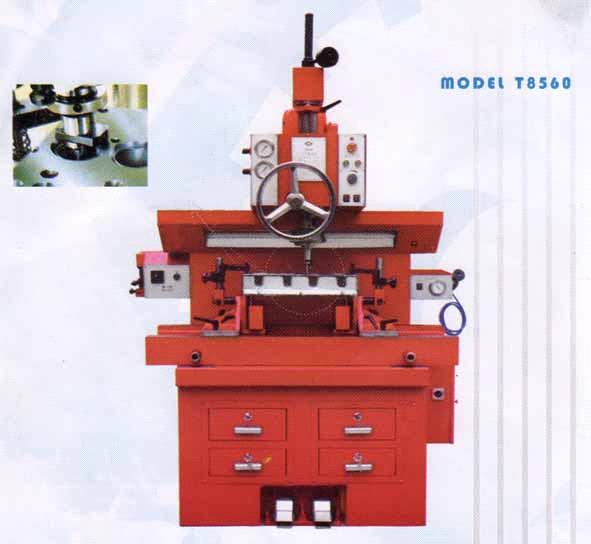

Model:T8560
Boring diameter Ф20mm-160mm

Max.cylinder overall size 1000*300*150mm
Spindle travel 185mm

Angle of boring head 0-6°

Boring head travel :(longitudinally) 800mm
Boring head travel:(cross) ± 25mm

Rotating range  :± 30°
Overall dimensions           1300x800x1930mm
Packing size                 1700x1100x2000mm
N.W/G.W                      1200/1400kg

Model:T8590
Boring diameter             Ф20mm-90mm
Spindle speed range         55,85,210,320,370,550 rpm
Spindle travel              180mm
Distance from spindle axis to guideway surface    270mm
Max. distance from end of spindle to working table 750mm
Cylinder head fixture movement _disibledevent=left>Optional Accessories: Disc boring cutter

Place of Origin:	Shaanxi in China
Model No:	T8560
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Supply Ability:	Set/Sets\|30\|Year
Delivery Time:	30-60 days
