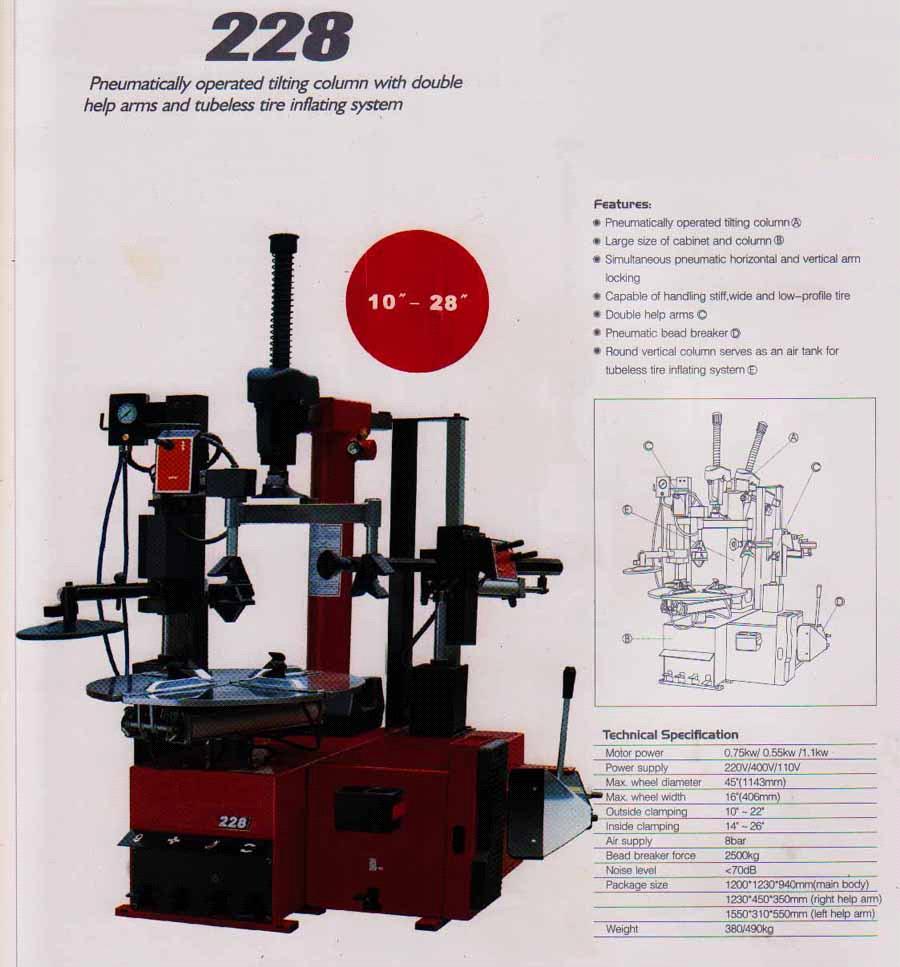

Tyre changer

Features:

Pneumatically operateed tilting column;

Large size of cabinet and column;

Simultaneous pneumatic horizontal and vertical arm locking;

Capable of handling stiff,wide and low-profile tire;

Double help arms;

Pneumatic bead breaker;

Round vertical column serves as an air tank for tubeless tire inflating system;

Technical Specification:
Motor power: 0.75kw/0.55kw/1. 1kw
Power supply: 220v/400v/110v

Max. Wheel diameter: 45"(1143mm)
Max. Wheel width: 16"(406mm)
Outside clamping: 10"-22"
Inside clamping: 14"-26"
Air supply: 8bar
Bead breaker force: 2500kg
Noise level: <70dB
Carton Size: 1200mm*1230mm*940mm( main body)
120mm*450mm*350mm(right help arm);

1550*310*550mm(left help arm)

weight:380/490kgs
