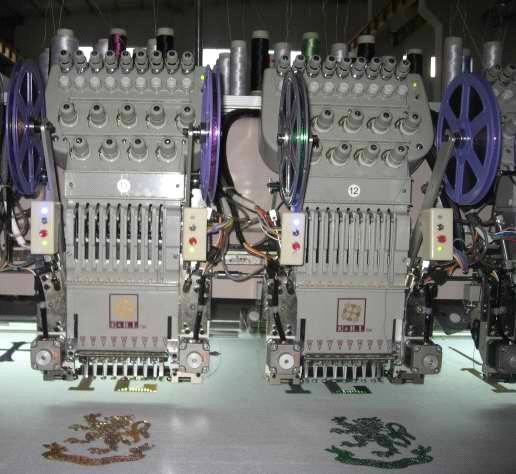

Production description:
Application Range:Applied to fashion garments,handbags,wedding dresses,shoes,caps,ladies clothing,sweaters,quality crafts etc with excellent performance.ElectricControlling System: Dahao 258 computerized controlling system,5 inches color LCD monitor.
Memory Capacity: 1000,000 stitches,99 patterns.
Memory Format: Read files in Tajima(DST),Barudan,ZSK,Binary system,Ternary system
Imput: USB port or 3.5 inches floppy disk that both can be compatible.
Trimming system: Automatic trimming device
Stitches length: Ternary system: 0.1～12.1mm；Binary system：0.1～12.7mm
Sequin device: Installed in front OR sides
Sequin Size: Sequines in 3mm、4mm、5mm、7mm、9mm are available and other various ornament in tape
Rotary Hook: Japanes original bobbin,bobbin case.
Driving: Reinforced linear guide rail driving design
Head: Digitalized head with large guide plate saving adjusting to be horizontal manually.
Color changing: Automatic color changing device.
Sewing Speed: 250～850rpms
Motor:Main shaft: Main shaft:Toshiba induction motor 1.5KW,X,Y stepping motor 110(2pcs)
Voltage: 2.5KW; 50～60HZ
Power consumption: Three phase 380V,Single phase220V,Single phase 110V for options.
|
model |
Heads |
Needles |
Head Distance(mm) |
Embroidery Area (mm) |
Dimension (mm)(L*W*H) |
|
BL-JPX920 |
20 |
9 |
275 |
275×750／500 |
7100×1900×1600 |
|
BL-JPX920 |
20 |
9 |
300 |
300×750／500 |
7600×1900×1600 |
|
BL-JPX918 |
18 |
9 |
300 |
300×750／500 |
7100×1900×1600 |
|
BL-JPX915 |
15 |
9 |
300 |
300×750／500 |
6100×1900×1600 |
|
BL-JPX915 |
15 |
9 |
330 |
330×750／500 |
6600×1900×1600 |
|
BL-JPX912 |
12 |
9 |
330 |
330×750／500 |
5500×1900×1600 |
|
BL-JPX912 |
12 |
9 |
400 |
400×750／500 |
6450×1900×1600 |
