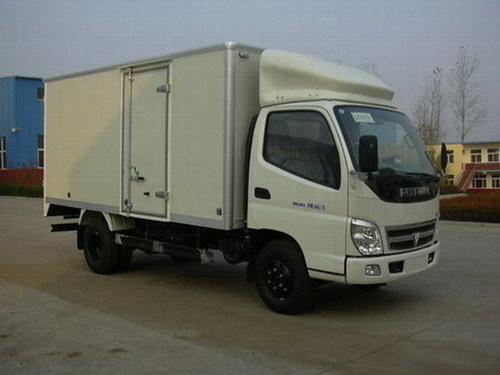

cargo box van

Detailed Product Description

ZT5040XPTB-L
chassis	model		BJ1043V8JE6-D
	category		Ⅱ
	manufacturer		BEIQI FOTON MATOR CO.,LTD
	axle		2
	wheel base（mm)		3360
	wheel track（front/rear mm）		1530/1485
	tire size		6.50-16,7.00-16
	tire		6
engine	model		YZ4102ZLQ
	manufacturer		Yangzhou Diesel Engine Co.,Ltd
	delivery capacity（ml）		3432
	fuel		diesel fuel
	rated power（Kw)		81
	emission standard		GB17691-2001 the second stage, GB3847-1999
	emission standard		GB17691-2001 the second stage, GB3847-1999
frame	front	type	steel plate spring
	front	quantity	8
	back	type	steel plate spring
	back	quantity	9+8
car load	dimension parameters	overall dimensions（mm)	599520002900
		LWH	599520002900
		interior cargo body dimensions（mm)	416519001900
		LWH	416519001900
		cubage（m3)	15
		front overhang/rear overhang(mm)	1085/1500
	quality parameters	approach angle/departure angle(°)	23/22
		curb weight(Kg)	2915
		rated payload(Kg)	995
		gross vehicle weight(Kg)	4040
	max. speed(km/h)		95
	Persons in cab (persons)		2
