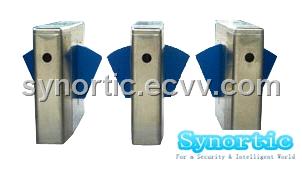

Passage Turnstile

Detailed Product Description

Description:
With function of self-examine and alarms, it is convenient for users to maintain and use. Two directions controlled/one direction controlled and LED direction indicator. It will raise the alarm by means of a sound or light when someone pushes in illegally. The mechanism is locked until a valid open signal is received. Reset automatically--Go signal will be cancelled if passage through is not completed within pre-set time. The standard default is 5 seconds. Unit can be adjusted permanent open or close when power off to meet different needs. Unit can be controlled and administered by remote control
Specification:
*Framework: 304 Grade Stainless Steel
*Specification: 1400*300*1000(mm)
*Weight: 140(kg)
*Arm length: 285(mm)
*Interface: standard port-RS485
*Power voltage: AC220 (10%more or less) V, 50HZ
*Drive voltage: 24V
*Transit speed: 30 persons per minute
*Working Environment: Indoor/Outdoor (with a tent over)
*Temperature: 10 below degree to 50 degree
*Humidity: <90%
*Sizes optional: 600*1000*300(mm)
*Material of arms is optional
*Suggesting customers cooperating as ODM or OEM, providing system analysis, mould-making, circuit design, producing-assembly, package design, etc, linear service
