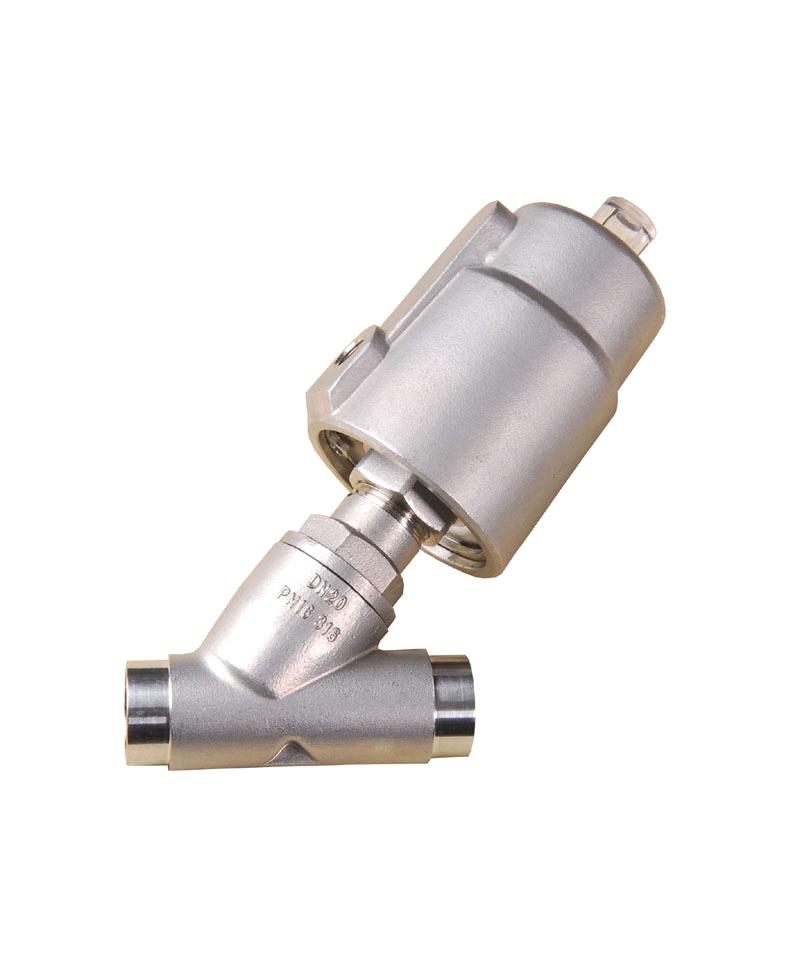

pneumatic valve

Detailed Product Description

Advantages:

Easy installation, maintenance-free, super long life;
Reliable operation, self-adjusting stem seals, cylinder can be 360rotated free;
Anti-corrosive, high flow rate, low fluid resistance, no water-hammer;?
Optical position indication, low control air consumption.

Control Type: single acting (NO/NC), double acting
Size: DN10 ~ DN65
Connection:?DIN-11850.2,?DIN-11850.3, SMS3008
Actuator Size: 40mm, 50mm, 63mm, 90mm
Body Material: CF8M (AISI 316) or CF8 (AISI304)
Actuator: CF8 (AISI304)
Seat: Teflon (PTFE)
Applicable Fluid: water, alcohol, oil, fuel, steam, neutral gas or liquid, organic solvent, acid and lye?
Fluid Pressure: Max. 1.6MPa (16 bar, 232Psi)
Fluid Temperature: -10 - +200oC
Max. Viscosity: 600 mm2/s
Control Fluid: neutral gas, air
Control Pressure: 0.3 - 0.8MPa
Ambient Temperature: 0 - +80oC
Options: solenoid valve, smart positioner, limit switch, stroke limitation, manual override

Place of Origin:	Shandong in China
Model No:	100 Series
Brand Name:	ESG
Payment Terms:	L/C,T/T(Bank Transfer),Western Union,
Minimum Order:	Set/Sets 10
Supply Ability:	Set/Sets\|10000\|Month
Package:	Carton packing and pallet for delivery
