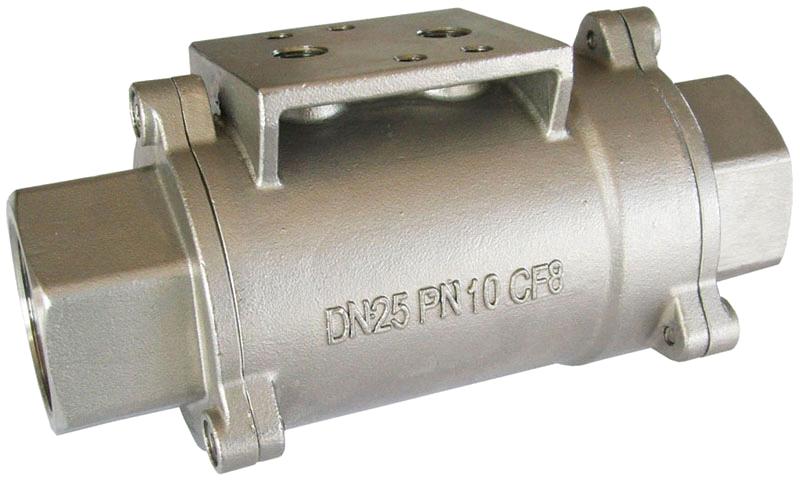

pneumatic shuttle valve

Advantages:
Small shape, large flux;
Perfect sealing, vacuum tightness 740mmHg (Mercury);
Any mounting position acceptable (horizontal, vertical, oblique).

Size: DN10 - DN50 (3/8" ~ 2")?
Connection: BSP or NPT threaded?
Control Type: single acting, double acting??
Body Material: CF8M (AISI316) or CF8 (AISI304)
Seat:
EPDM: perfectly suitable for hot water and steam, unsuitable for mineral products (oils, greases, fuels etc.);
VITON (FKM): perfectly suitable for most fluid, unsuitable for steam;
Fluid Pressure: Max 1.0MPa (10bar, 232Psi)
Fluid Temperature:-10 ~ +130C
Max. Viscosity: 600 mm2/s
Control Fluid: neutral gas, air
Control Pressure: 0.3 - 0.8MPa

Place of Origin:	Shandong in China
Model No:	200 Series
Brand Name:	ESG
