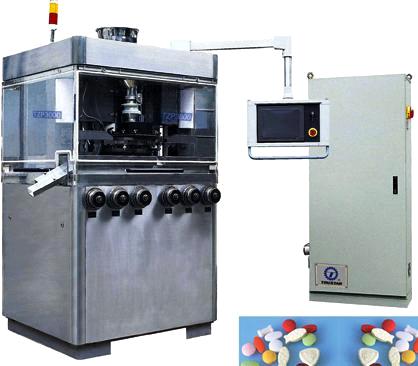

TZP Series High Speed Rotary Tablet Press

Detailed Product Description

Main Technical Specifications

Model TZP1042 TZP1038 TZP1032 TZP1026 TZP3059 TZP3055 TZP3045 TZP303

P/D Qty. 42 38 32 26 59 55 45 37

Punch Type IPT19(EU19) BBS IPT19(EU19) BB IPT19(EU19) B IPT1" (EU1")D IPT19(EU19) BBS IPT19(EU19) BB IPT19(EU19) B IPT1" (EU1")D

Max. Tablet Diameter 11mm 13mm 16mm 25mm 11mm 13mm 16mm 25mm

Max. Output (tablets/hr) 252 000 228 000 192 000 117 000 566 400 528 000 415 800 341 880

Max. Turret Speed 100 rpm 75 rpm 80rpm 77rpm

Main Motor Power 18mm \ 11 Kw 15 Kw

Max. Filling depth 7.5 kw

Max. Main Pressure 100 KN

Max. Pre-pressure 20KN

The depth of upper punch entering into the die 2-8mm

Machine Height 2050mm

Area occupied Main Machine is about 1100X1100mm Electric Control Cabinet is about 800X400mm

Main Machine Weight 3000Kg
