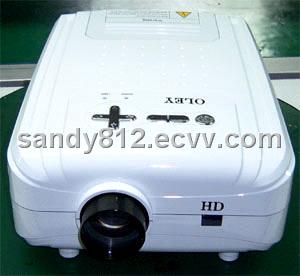

Oley HD version(D8H, D8HD) that can support 1080i/720P/576P/480P/576i/480i signals, with such inputs as HDMI, YPrPb/YCbCr, SCART, AV, S-VIDEO, VGA, TV(analog), Especially, our D8HD have unique DVB-T function, also with USB, card reader input, which meet the need of popular digital TV, and can play USB, card reader media! The first DVB-T projector from china.
With a function of up/down & left/right picture rotation (horizontal/vertical flip) which could achieve Front/Rear/Ceiling/Rear Ceiling projection.
Advanced functions: Built-in TV tuner, PIP(picture in picture), 3D, TeleText function, NICAM, ZOOM, Multi window, etc.
Support HDMI 1.1, 1.2, 1.3, compliant DVI 1.0, support SCART signal in.
Support USB1.0, 2.0
Support card reader MMC, MS, SD format
USB, card reader input support file: *. MPG, *. DAT, *. VOB, *. AVI,
And support video format MPEG-1/2, MP@ML, ISO MPEG4, Xvid, DivX(4.0, 5.0),
And support audio format: MP3, WAV, WMA(need licence).
And support photo format: JPEG
Under Digital TV, there are such as options as auto TV search or broadcast programs, program management, system setup, software update and software version information view etc.
Portable type, small size & light weight for various applications;
Multiple safety designs and easy bulb replacement for safe & convenient use.
"Green product", no radiation & pollution, low noise & power consumption;
Easy operation with an IR remote controller, equiped with 6 OSD languages(chinese/German/France/Spanish/Italian);
Technical Specifications:
Resolution: 640x480, supports 800x600 and 1, 024x768, 1280*1024
Brightness: 2000ANSI Lumens
Contrast: 500: 1
Projection System: 3.5 inch LCD
Compatibility: Support 1080i/720P/576P/480P/576i/480i signals
Projection methods: Front/Rear/Ceiling/Rear Ceiling
Input: HDMI, YPrPb/YCbCr, SCART, AV, S-VIDEO, VGA, TV(analog), (D8HD even with DVB-T, USB, card reader input)
Ration: 4: 3 & 16: 9 switch freely
Video Compatible: PAL/NTSC/SECAM
Image Enhance Technology: ACM(Adaptive Color Management) & ACC(Adaptive Contrast & Color) & DCDI(Directional Correlational De-Interlace).
Picture Modes: Support STANDARD/DYNAMIC/SOFT/PERSONAL 4 picture mode settings.
Major Functions: IR remote control, up/down & left/right picture rotation (horizontal/vertical flip), TeleText function, picture-in-picture (PIP)function, OSD screen display function, optical keystone adjustment, manual focus adjustment.
Safety features: Abnormal working temperature alarm, over-heat alarm & auto shutdown, fan error alarm & auto shutdown, power-off confirmation, 3 fans quiet ventilation system, intake anti-dust design, easy LCD cleaning design, easy bulb replacement design.
Menu language: Support 6 OSD menu languages (customer optional).
Lamp: 150w metal halide projection lamp, lamp life: About 6, 000 hours.
Image zoom: 16 grades electronic horizontal/vertical image zoom.
Sound effect: Bass & treble adjustment.
Sound modes: Support standard, news, music and personal 4 sound modes.
Noise reduction modes: Support off, weak, middle and strong 4 NR modes.
Auto Power-off: Automatic power off when no signal input
Speakers: 2W *2 Audio output.
Projecting image size: 23"-120"
Power Consumption: 200W
Power Supply: 210v-240v, 50/60HZ
Audio Noise: <32db
Dimensions: 258x323x120mm
Packing size: 47*31*19CM
| Trademark: |
OLEY |
| Model: |
D8HD |
| Standard: |
CE |
| Productivity: |
3000pcs/m |
|
|
| Origin: |
China |
| Packing: |
Color Box |
| Min. Order: |
100pcs |
| Transportation: |
Courier Or Sea |
| Place of Origin: | Guangdong in China |
| Model No: | D8HD |
| Brand Name: | OLEY |
| Payment Terms: | Western Union, |
| Supply Ability: | Piece/Pieces|3000|Month |
| Package: | COLOUR BOX |
| Delivery Time: | 1-2DAYS |
