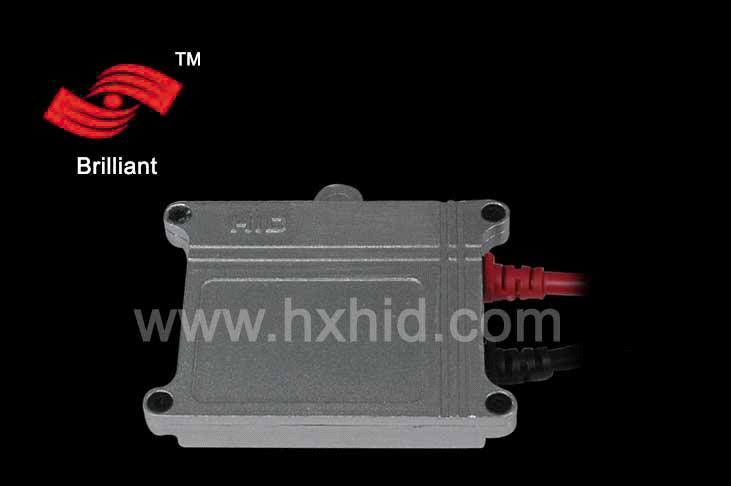

Detailed Product Description
Features:
1)High and reliable quality of ballast
2)Input voltage range: DC 8 - 16V
3)Rated voltage: 13.5V
4)Max. start voltage: 23kV
5)Input current: 3.2A
6)Output power: 35W
7)Working temperature: -40 ~ 105°C.
8）The ballast matches lamps as H1, H3, H4, H4 (H/L), H7, H8, H9, H10, H11, H13, 9004, 9005, 9006, 9007, 880, 881
9） color temperature:3000K to 30000K
The leave factory testing item of the product:
1、6 hours continuous working aging test.
2、Connection circuit protection test.
3、Short circuit protection test.
4、Lack of voltage protection test.
5、over voltage protection test.
6、Flash light concussion test.
7、Quakeproof capability test.
8、cold、warm boot test.
9、Polarity protection test.
10、EMC anti-jamming test.
| Place of Origin: | Guangdong in China |
| Model No: | Slim ballast 01 |
| Brand Name: | Brilliant |
| Delivery Time: | 3 days |
