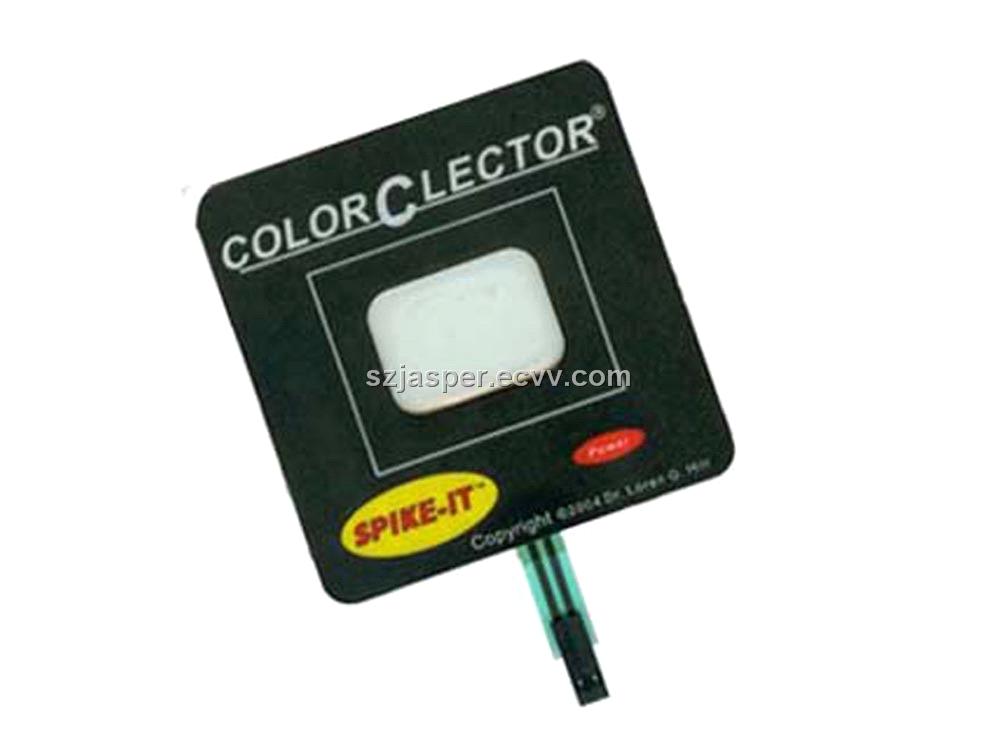

Materials
1 Polycarbonate, polyester or polyvinyl chloride layers
2 Multi-color graphic overlays
3 Engineered adhesives
4 Metal domes or polydomes
Mechanical characteristics
1 Actuation Force, Nontactile: 4oz. to 16oz.
2 Actuation Force, Tactile: 10oz. to 16oz. TYPICAL
Switch Stack-Up Thickness: available for custom specification
Electrical feature
1 Current Rating: 50 ma AT 30 VDC
2 Actuations, actile: 1 million minimum at maximum rated load
3 Actuations, Nontactile: 5 million minimum at maximum rated load
4 Switch Contact Bounce, Tactile: 10 milliseconds max
5 Switch Contact Bounce, Nontactile: 5 milliseconds max
6 Termination Contact Resistance: 100 ohms max, loop
7 Insulation Resistance: 1 Gohm Win AT 100 VDC
Environmental condition
1 Operation Temperature: -20 °C to 100 °C
2 Storage temperature: -25 °C to 115 °C
3 Humidity: to 95% (switch fully sealed to environment)
Operational Tolerance
Printing tolerance: ± 0.25mm Cutting/Assemble tolerance: ± 0.2mm
