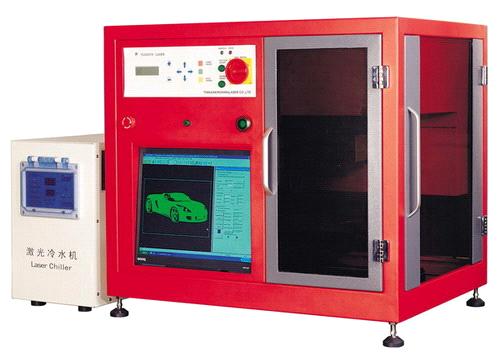

2D/3D crsytal photo engraving machine TJDP-522K

Detailed Product Description

2D/3D crystal laser engraving

Characteristic:

A. German laser diode pump 2000Hz,spanlife is 15000hours and almost maintenance free

B. 2-3 mins for a 3D portrait inside the 50X50X80mm crystal

C. Large engraving range: 300x200x80mm

D. Lowest power consumption, low lifetime cost, low cost of ownership

E. Used friendly software under Windows Xp require only short training

F. Simple service through exchange of only one functional unit in a short

Time

G. Most precise marking whith extraordinary beam quality

Item	Parameter
Laser Medium	Nd:Diode pump
Laser Wavelength	532nm
Laser Frequency	2000Hz
Maximum Engraving Range	300x200x80(mm)
Maximum Engraving Speed	2000points/s
Continuous Working Time	12hrs
Maximum Power of the Whole Machine	1.6 KW
Number of Laser Heads	1
Weight of the Whole Machine	120 kgs
Cooler unit	36kgs
Dimension of the Whole Machine	850mm×730mm×650mm
Water Medium	Deionized water or pure water
Cooling Medium	R134A

Place of Origin:	Hubei in China
Model No:	TJDP-522K
Brand Name:	Tianjun
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Supply Ability:	Set/Sets\|4\|Month
Package:	PLY carten box and flight case
Delivery Time:	two weeks
