electric bike

Detailed Product Description

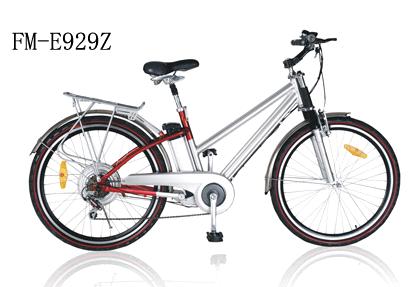

FM-E929Z

Components
Frame:	Al Alloy 6061 T6
Tyres:	26"×1.95",puncture resistant K-shield
Rim:	Al Alloy twin wall and CNC side wal
Spokes:	13g steel
Brakes(front):	V brakes
Brakes(Rear):	V brakes
Gears:	6-class Shimano(TY-18)
Front fork::	Suspension,steel
Handle bars:	Al Alloy
Head set::	Water proof headset
Chainguard:	PC
Mudguard:	Al alloy with Al alloy supports
Chainwheel :	Steel 44 T,Al alloy crank
Chain:	Rust resistant chain
BB:	Cartridge type
Stander:	Al alloy central stander
Rear carrier:	Al alloy
Saddle :	GEL Cruiser saddle
Seat Post :	Steel with suspension,folding

Electric System
Motor:	180-250w(EU)/350w(USA)High Speed Brush Gear DC hub motor
	Option:High Speed Brushless Gear DC hub motor
PAS Controller:	Inner Intelligent Torque Sensor PAS
	Pedaling Run/Pedaling-Electric Assist Run
	Option: Pure Electric Run Model
	Overload protection ,Low voltage protection
Battery :	Option: 24V 8AH Ni-MH battery / 24V 8Ah or 24V 10Ah Li-ion battery
Charger :	220 / 110V, 50 - 60Hz 2 amps smart charger. Charge time 4-6 hours
Performance
Maximum Speed :	≤25Km/h
Range:	e-bike mode 20-25km,PAS/Pedaling-Electric mode 45-55km
Load capacity::	125KG
Weight::	Ni-MH battery 3.7 kgs
	Li-ion battery 2.8 kgs
N.W./G.W. :	24/27kgs(without battery)
Carton Size :	1450×280×770mm
Capability :	96pcs/20' container 208pcs/40' HQ
