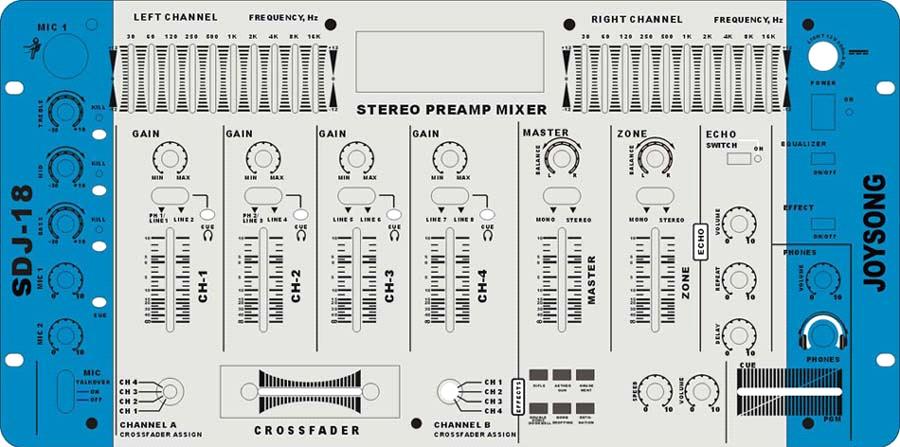

DJ mixer

SPECIFICATIONS
INPUT SENSITIVITY/MPEDANCE
Mic 1-2:1.5mV/600Ω, balance/unbalance.
Phono 1-2:3.0mV/50KΩ.
Line 1-6:150mV/27KΩ.
OUTPUT LEVEL
Master output:2.0V/10KΩ.
Zone output:2.0V/10KΩ.
Record output:150mV/10KΩ.
FREQUENCY RESPONSE
20Hz-20KHz+/-3dB
SIGNAL RATIO(AT 1KHz)
Mic:>60dB/1.5mV input
Phono:>70dB/1.5mV input
Line:>80dB/1.5mV input
DISTORTION
Mic:0.20%
Phono:0.05%
Line:0.03%
EQUALZER
Control frequencies:30,60,120,250,500,1K,2K,4K,8K,16K
Boost/Cut range:±12dB from center.
CHANNEL EFFECT
6-Audio effect (SBA 16/SBA18)
Echo effect (SBA 168/SBA18)
MIC EQ CONTROL
High:10KHz+10/-30dB
Mid:1KHz+10/-30dB
Low:100Hz+10/-30dB
TALKOVER ATTENUATION
-16dB
DIGITAL DELAY TIME
20ms-250ms
POWER SOURE
Power voltage:115/230VAC
Frequency:50/60Hz
