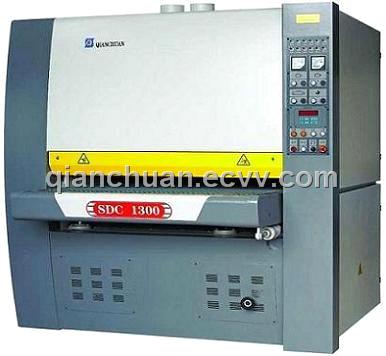

Sanding Machine

Sanding Machine

Detailed Product Description

Model No.		SDC1300
Working Width		40～1300mm
Working Thickness		2.5～100mm
Working Length		≥600mm
1^st Sanding Belt Speed		18m/s
2^nd Sanding Belt Speed		12m/s
Feed speed		6～30m/min
Size of sanding belt(W×P)		1330×2200mm
Motors Power	Total motor power	37.74 kW
	1st head motor	22kW 4-pole
	2nd head motor	11 kW 4-pole
	Brush motor	0.37 kW 4-pole
	Feed motor	4 kW 4-pole
	Lifting motor	0.37kW 4-pole
Working Air Pressure		0.55MPa
Consumption of compressed air		0.1 m³/min
Volume of Sucked Air		9000m³/h
Speed of Sucked Air		25～30m/s
Overall Dimension(L×W×H)		2360×2030×2220mm
Net Weight		3300kg

Place of Origin:	Shandong in China
Model No:	SDC1300
Brand Name:	QianChuan
FOB Price:	9900-11000 USD QingDao
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Supply Ability:	Set/Sets\|200\|Month
Package:	Plastic or up to the customer.
Delivery Time:	45 days.
