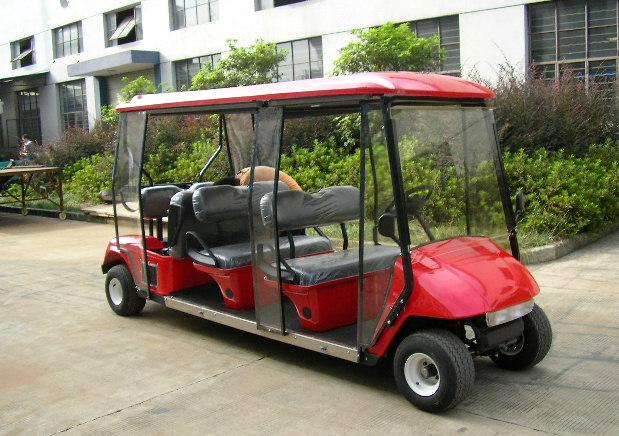

electric Golf Cart(DS-GF04)

Model: DS-GF04
Specification:
Overall dimensions(mm): 4090X1180X1185
Motor: 48VDC, high efficiency series wound 3KW/4KW(4. 2HP/5. 5HP)
Electric system: 6-8VDC batteries, solid state continuously variable speed controller, inductive throttle sensor(ITS)
Brakes: Dual rear wheel mechanical drum hydraulic pressure brakes with non-asbestos linings
Steering: Self-compensating single reduction rack and pinion
Speed(km/h): 19-22
Min. Turning circles diameter(m): 8. 6
Wheel base(mm): 2388
Min. Ground clearance(m): 127
Braking distance(m): 6
Climbing ability(%): 30
Empty weight without batteries(kg): 380
Load weight includes passengers, cargo, accessories and operation(kg): 544
Seating capacity(persons): 6
Range(Km): 80-100
Container load: 4pcs/20ft container, 8pcs/40ft container, 12pcs/40HQ
