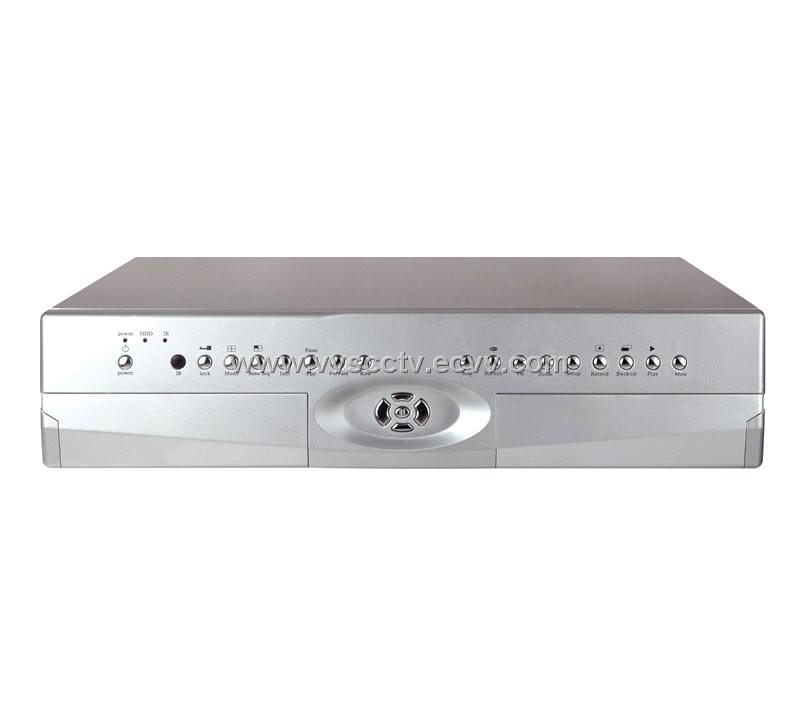

DVR (VVS-DVR6016)

Next Product

Detailed Product Description

Model No.	VVS-DVR6016
Video Input	16CH input (BNC)
Video Output	3 channel output (Main Monitor/S-VHS Monitor/VCR)
Recording Frame	PAL: 25f/s/4ch NTSC: 30f/s/4ch
Display Frame	PAL: 100f/s/4ch NTSC: 120f/s/4ch
Resolution	NTSC: 720 x 240; 352x240 PAL: 720 x 288;352 x 288
Compression	MPEG4
Record Image Quality	4 levels adjustable
Recording frame	Half D1:60fps CIF:60fps
Recording resolution	120(00)Fiel/sec,352x240(288)
Record Mode	Normal, Alarm, Motion detection
Backup	Network,USB,CD/DVD-RW
Video Search	Search by event, date and time
PTZ control	RS485
Motion Detection	8 level sensitivity,30x24 sensing areas
Audio /Alarm input	4CH 64Kbit/sec mono audio interface,16ch(N.O.,N.C.)
Audio/Alarm output	1ch Audio Output,1ch Alarm output.
Storage support	Support 500G HDD,SATA and DVD-RW
Case	Silver or Black
Weight	8KG
Dimensions	435mm(L)x440mm(W)x96.6mm(H)

Place of Origin:	Shenzhen in China
Model No:	VVS-DVR6016
Payment Terms:	T/T(Bank Transfer),Western Union,
Supply Ability:	Piece/Pieces\|3000\|Month
Delivery Time:	3-7
