Centrifuge

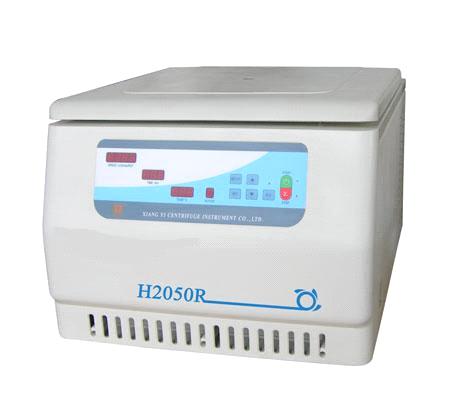

H2050R-1 HIGH-SPEED REFRIGERATED CENTRIFUGE

◆ Microprocessor control, the brushless direct drive motor with frequency inversion for environment protection.
◆ The function of electronic lock door, over-speed and over-temperature, with Various of rotors for convenient use.

TECHNICAL PARAMETER

Model H2050R
Max speed 20500r/min
Max RCF 29200×g
Max Capacity 4×100ml
Speed accuracy ±50r/min
Temperature range -20℃～40℃
Temperature accuracy ±1.5℃
Time range 0～99min
Noise ＜65dB(A)
Motor Frequency conversion motor
Power supply Ac200V50Hz18A
Dimension 580×800×900mm
(L×W×H)
Weight 110kg

Number Max Speed Max RCF Capacity
NO1 Angle rotor 20500 29200 12×1.5/2.2ml
NO2 Angle rotor 16500 17280 10×5ml
NO3 Angle rotor 15000 23120 12×10ml
   6×30ml
NO4 Angle rotor 13000 16760 6×50ml
6×30ml(adaptor)
NO5 Swing rotor 4500 4210 48×15ml
4×300ml
NO6 Micro plate rotor 4000 2850 4×2×96
  2200 2×2×96
NO7 Angle rotor 16500 24890 24×1.5/2.2ml
NO8 Angle rotor 14000 19030 4×50ml
NO9 Angle rotor 12000 11720 4×100ml
