motorized ball vlaves

Detailed Product Description

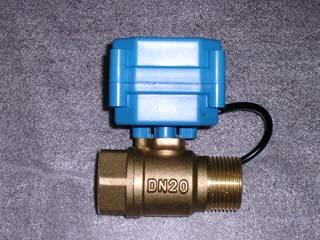

Motorized ball valves

1.HVAC
2.Water treatment
3.Chemical process
4.Small equipment for automatic control
5.Replacing solenoid valve, particularly when solenoid cannot work reliably

Size from 1/2" to 1", with manual override function

Technical Parameters:
Working voltage: DC 5V, AC/DC12V, AC/DC24V, AC/DC110-220V
Working pressure: 1.0 or 1.6 Mpa
Actuator rotation: 90 degree
Rotation direction: Double acting
Enclosure: IP67
Input Power: Max 3W-6W

Material of main parts:
Actuator: Heatproof ABS
Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings
Body: brass or stainless steel
Ball: brass or stainless steel
Stem: brass or stainless steel

Main Features:
A. Long service life (70000-100000 times)
B. Mini size, suitable for small equipment
C. Patented technology---Floating seal structure
D. Working current is only 60-80mA.
E. IP67
