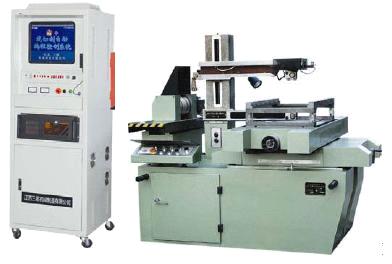

Wire Cutting EDM

Detailed Product Description

Application: It has a very extending application scope. Can process all conductive material, for making mould/ die, bearing, other metal made parts. With the features of low cost, high speed, compact and easy to operate.

It is very user friendly with PC interface, Software drawing and processing. What is most important, it can make products satisfy all customers.

1) Program input by keyboard and auto-programmer;

2) Control funtion: Any angle rotatin, axis symmetry, graph expansion and shrinkage, retreat, returning the starting point, auton-centering and auto shutoff of facilities after process completion;

3) Man program storage: 2000 sections;

4) Shortcircuit treatment: Auto-retreat upto the eliminatio of shortcircuit;

5) Wire breakage treatmnet: Stop and retutn to the starting point;

6) Quick check the error of program reset;

7) Have memory of closing electrical power, resume processing the function after connecting the electricity;

8) Paralledl work: Input program while processing.

Main technical data of DK77AZ
Type	DK7720AZ	DK7725AZ	DK7732AZ	DK7740AZ
Worktable size(mm)	450 × 318	520 × 336	576 × 366	720 × 460
Table travel(mm)	250 × 200	320 × 250	400 × 320	500 × 400
Max.workpiece thickness(mm)	200 (200 )	400 (330 )	400 ( 330 )	400 ( 330 )
Total weight(Kg)	900	1100	1300	1700
Overall dimension(mm)	1300 × 900 × 1250	1400 × 1060 × 1500	1520 × 1140 × 1500	1680 × 1390 × 1540
Wire traveling speed(m/s)	11.5
Wire diameter(mm)	0.13- 0.18
Max.cutting speed(mm 2 /min)	100
Machined taper( ° /mm)	6 ° /100
Power input	3N-50Hz 380V(Monophase 50Hz 220V)
Total power(KW)	≤ 1.2

Place of Origin:	Jiangsu in China
Model No:	DK7732AZ-3
Brand Name:	Sanxing
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Supply Ability:	Set/Sets\|100\|Month
Package:	Wood Case
Delivery Time:	30 days
