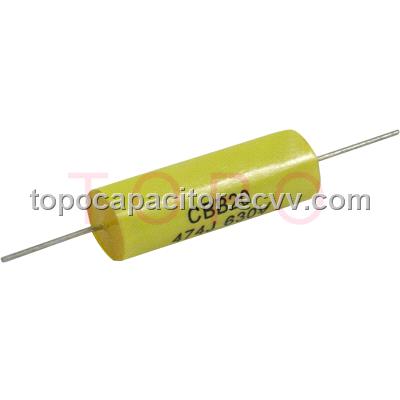

CBB20 Metallized Polyester Film Capacitor

Detailed Product Description

Construction
Dielectric: polypropylene film,PP
Cylindrical winding & Cylindrical flat
Insulating sleeve
Face ends sealed with epoxy resin

Features
Good self-healing properties

Typical applications
Energy storge
Filering

Terminals
Axial leads,lead-free tinned
Axial leads, insulated, tinned copper wires gathered together by a tin cover (fray)

Climatic

Max. operating temperature: 85 Centigrade

Climatic category: 40/085/21

Delivery mode

Bulk

Technical data and specifications

Operating temperature range	Max. operating temperature T_op,max85 Centigrade Upper category temperature T_max 85 Centigrade Lower category temperature T_min 40 Centigrade
Rated capacitance C_R	0.1 μF~15μF
Tolerance	J(+-5%); K(+-10%)
Rated voltage V_R	250VDC~1250VDC
_{^{DC test voltage}}	_{^1.4*VR, ^2s}
Rated frequency F_R	50/60Hz
Dissipation factor tan d	<=0.002 1KHZ
Insulation resistance	C_R<=0.33μF V_R<=100V >=50000M? V_R>100V >=100000M? C_R>0.33μF V_R<=100V >=15000s V_R>100V >=30000s
