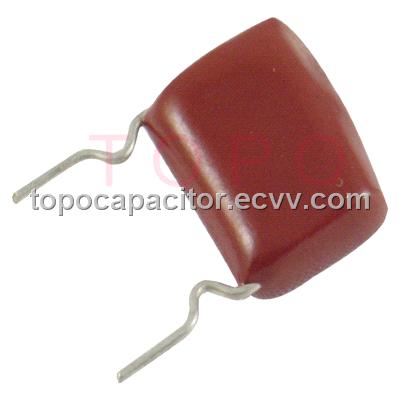

CL21 Metallized Polyester Film Capacitor

Detailed Product Description

Construction
Dielectric: polyester film, PET
Radial & Winding
Wound-film & Stacked-film technology

Features
Very small dimensions
Self-healing properties
High pulse strength

Typical applications
Energy saving lamps
ADSL

Terminals
Straight wire leads, lead-free tinned
Crimped wire leads, lead-free tinned

Climatic

Max. operating temperature: 105 Centigrade
Climatic category: 55/105/56

Delivery mode

Bulk

Technical data and specifications

Operating temperature range	Max. operating temperature T_op,max105 Centigrade Upper category temperature T_max 105 Centigrade Lower category temperature T_min 55 Centigrade Rated temperaturer T_R 85 Centigrade
Rated capacitance C_R	0.00068 μF~22 μF
Tolerance	J(+-5%); K(+-10%)
Rated voltage V_R	63VDC~1000VDC
_{DC test voltage}	1.4*V_R, 2s
Rated frequency F_R	50/60Hz
Dissipation factor tan d	<=0.01 (1KHz)
Insulation resistance	C_R<=0.33μF V_R<=100V J>=15000M? K>=3750M? V_R>100V J>=30000M? K>=7500 M? C_R>0.33μF U_R<=100V J>=5000s K>=1250s U_R>100V J>=10000s K>=2500s
