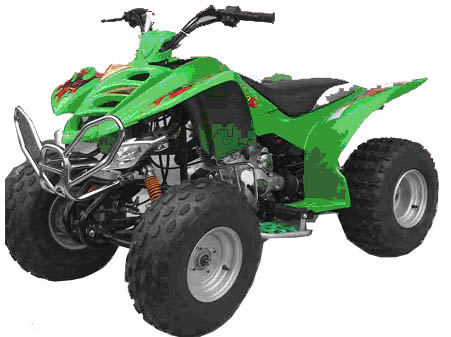

GH150ST-B With Revert Gear
Engine Type---------------------1P62FMJ, Single-Cylinder, Forced Air-Cooled, Four-Stroke
Displacement--------------------149 cc
Compression Ratio-------------9.2:1
Power------------------------------10/9500 Kw/RPM
Max.Torque-----------------------11/7500 N.M/RPM
Starting Mode------------------- Electric Start/Kick Start
Ignition Mode------------------- CDI Electronic Ignition
Dimension -----------------------1620 X 840 X 1060 mm
Transmission-------------------- Shaft
Reverse--------------------------- With
Wheel Base--------------------- 1100 mm
Min.Ground Clearance--------130 mm
Dry Weight------------------------115 kg
Fr.Tyre Size---------------------- 20X7-8/200kpa
Rr.Tyre Size---------------------- 20X7-8/225kpa
Fr. Brake---------------------------Drum Rr. Brake: Drum
Max.Loading Capacity--------150 Kg
Max. Speed-----------------------50 Km/H
Package Way-------------------- Iron And Seven-Layer Carton
Container Loading--------------12 Units/32 Units Per 20?40?
| Place of Origin: | ZHEJIANG YONGKANG in China |
| Model No: | ATV G150B |
| Brand Name: | OSHEN |
