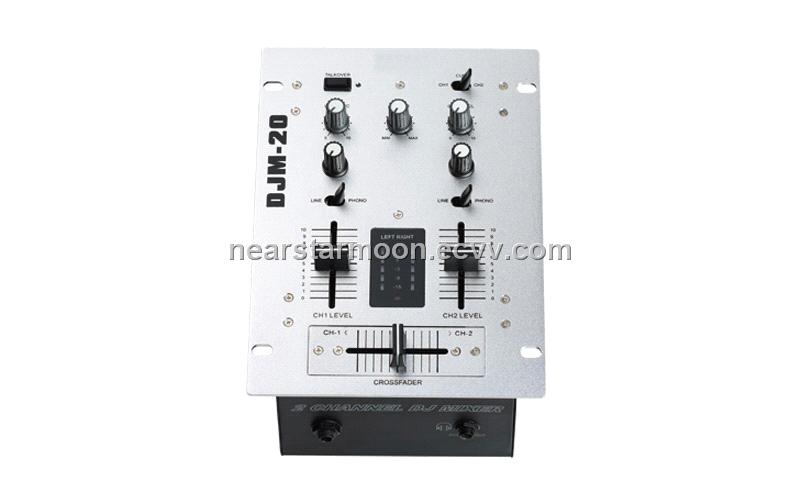

DJ Mixer DJM20

Detailed Product Description

Features

1. Professional 2-channel ultra low-noise DJ mixer with additional mic input and earphone monitor.
2. Talk over.
3. Super-smooth ULTRAGLIDE faders with up to 500,000 life cycles
4. VCA fader engines for utmost reliability and smooth audio performance.
5. Dedicated curve control for all faders.
6. Professional crossfader reverse switch.
7. Awesome adjustable XPQ stereo surround effect.
8. Precise master/cue level meter with peak hold function

Technical Parameter

Audio inputs
Microphone: 40dB Gain, electronically balanced input stage
Phono 1 and 2: 40dB Gain, unbalanced inputs
Line 1 and 2: 0dB Gain, unbalanced inputs
Audio outputs
Master: Max.+19dB/+10dB(Line in)
Tape: Typ. 0dB
Phones: Max.+180mW/75 OHM/1%,THD
General
S/N Ratio: >87dB (Line)
Crosstalk: >60dB (Line)
Distortion(THD): <0.7%
Frequency response: 10Hz-30KHz+1/-3dB
Power supply
Mains voltages: 230V+/-10% 50Hz/60Hz(115V+/-10% 50Hz/60Hz)
Power consumption: 15W
Fuse: F250mA 250V(F500mA 250V)
