Rototiller

Contact Now

Detailed Product Description

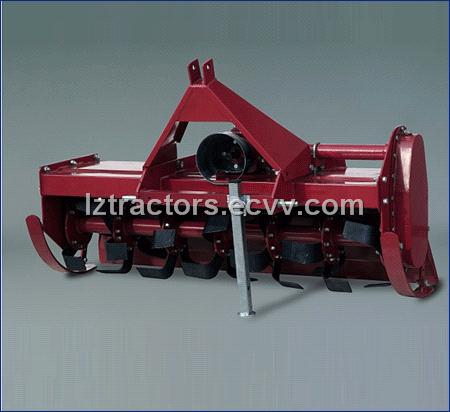

Heavy Rotary Tiller

MODEL	TH-90	TH-100	TH-105	TH-125	TL-135	TH-150	TH-180
DIMENSIONS (L × W × H) mm	1100 × 800 × 700	1200 × 800 × 700	1250 × 800 × 700	1450 × 800 × 700	1550 × 800 × 700	1550 × 800 × 700	1550 × 800 × 700
STRUCTURE WEIGHHT	250kg	260kg	265kg	285kg	300kg	320kg	350kg
TILLING WIDTH	895mm	995mm	1045mm	1245mm	1345mm	1495mm	1795mm
TILLING DEPTH	120mm	120mm	120mm	120mm	120mm	120mm	120mm
WORKING EFFICIENCY	1500-2500m 2 /h	1700-2600 m 2 /h	1800-2600 m 2 /h	2000-2900 m 2 /h	2000-3000m 2 /h	2200-3000 m 2 /h	2200-3200 m 2 /h
PTO TURNNING SPEED	540r/min	540r/min	540r/min	540r/min	540r/min	540r/min	540r/min
PTO SPLINE	6 × 8 × 700mm	6 × 8 × 700mm	6 × 8 × 700mm	6 × 8 × 700mm	6 × 8 × 700mm	6 × 8 × 700mm	6 × 8 × 700mm
POWER REQUIREMENT	16-20hp	18-22hp	20-28hp	25-30hp	25-30hp	30-50hp	40-75hp

Payment Terms:	L/C,T/T(Bank Transfer),
Delivery Time:	30 days
