Liquid Cylinders

Detailed Product Description

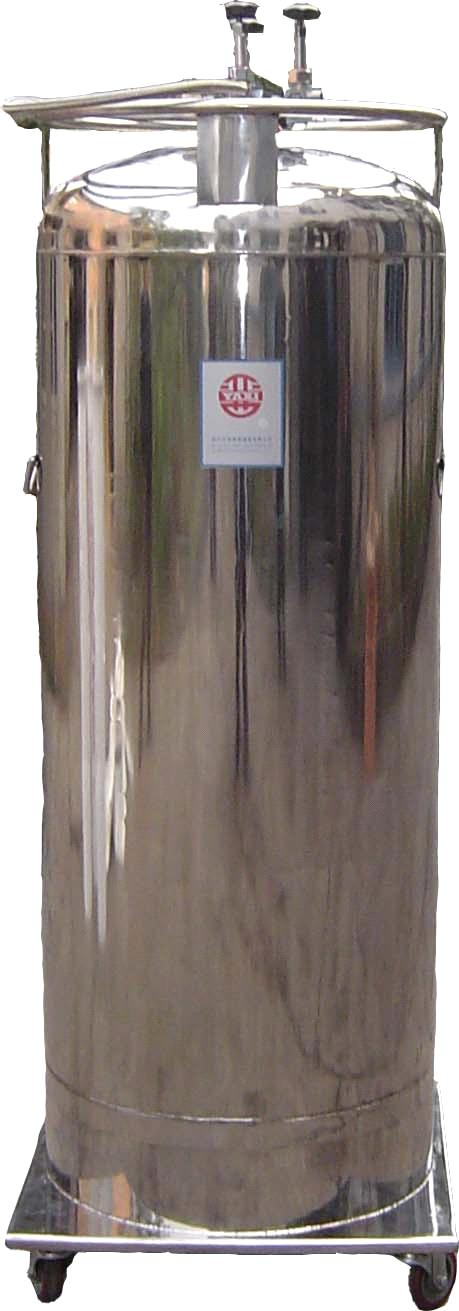

Auto Pressure-Increasing type cryogenic containers

Structure Characters:

The product is made of stainless steel and equipped with automatic pressure-increasing system,available to form pressure to transfuse liquid continuously by itself. With the characteristics of high efficiency and continuance, it can mainly be used in transferring transportation. It may also safely and conveniently be applied to liquid supplement to biological dewars of liquid nitrogen,liquid oxygen and liquid argon, or used together with electronic equipment.

Technical Parameter

Model:YDZ-50
Geometric Volume:55Liter
Available Volume:50Liter
Dimension:L450mmxW450mmxH1000mm
Empty Weight:55Kg
Full weight:95.4Kg
Working Pressure:≤0.2Mpa
Daily Evaporating rate:2.2%
Transfusion Amount:≥4Liter/Min

Model:YDZ-100
Geometric Volume:110Liter
Available Volume:100Liter
Dimension:L600mmxW600mmxH1270mm
Empty Weight:79Kg
Full weight:159.8Kg
Working Pressure:≤0.2Mpa
Daily Evaporating rate:1.4%
Transfusion Amount:≥6Liter/Min

Model:YDZ-200
Geometric Volume:220Liter
Available Volume:200Liter
Dimension:L700mmxW700mmxH1500mm
Empty Weight:132Kg
Full weight:293.6Kg
Working Pressure:≤0.2Mpa
Daily Evaporating rate:1.2%
Transfusion Amount:≥8Liter/Min

Model:YDZ-300
Geometric Volume:330Liter
Available Volume:300Liter
Dimension:L800mmxW800mmxH1600mm
Empty Weight:190Kg
Full weight:432.4Kg
Working Pressure:≤0.2Mpa
Daily Evaporating rate:1.1%
Transfusion Amount:≥10Liter/Min

electronic equipment.

Technical Parameter
Model:YDZ-500
Geometric Volume:550Liter
Available Volume:500Liter
Dimension:L1000mmxW1000mmxH1500mm
Empty Weight:335Kg
Full weight:739Kg
Working Pressure:≤0.2Mpa
Daily Evaporating rate:1.2%
Transfusion Amount:≥12Liter/Min

Place of Origin:	Guangdong in China
Model No:	YDZ
Brand Name:	BMTGZ
Payment Terms:	L/C,T/T(Bank Transfer),Western Union,
Delivery Time:	With in 20 days after receive payment
