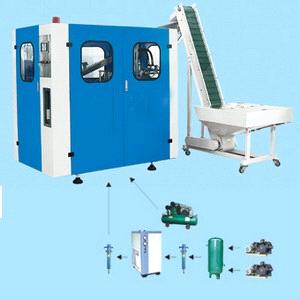

Automatic PET bottle blow molding machine, 4 cavities

Detailed Product Description

CM-A4 Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Product Feature
1.)Reasonable design, full automatic control, save power and labor. Adopt high quality components,
2.)Feeding system carries the performs by robot automatically.
3.)Infrared oven heater adopts the quartz lamp to heat the PET preforms.
4.)Fully automatic process with low investment, high efficiency ,quick and safe operation ,easy for trouble -shooting , maintenance and other benefits.
5.)We have perfect service after sales .

Productivity ( Depend on bottle design): 3200 to 4000pcs/h
Mould: 4cavity Bottle Body diamerter: 20mm to 100mm
Bottle height: 50mm to 350mm
Bottle neck diamete: 15mm to 32mm
Mould thick: 240mm
Mould: 500X500mm
Electrical source power: 380v 3Phase 220v 2Phase 50/60HZ
Power: 48kw Really use power: 14kw Operation air: 2000NL(8.0bar)/min B
low air: 2500NL(3.0bar) min Cooling water: 150L
min Size ( LxWxH): 1908x1858x1920mm
Weight: 3600kg
Auxiliary equipment : Preform unscrambler is equipped as standard
