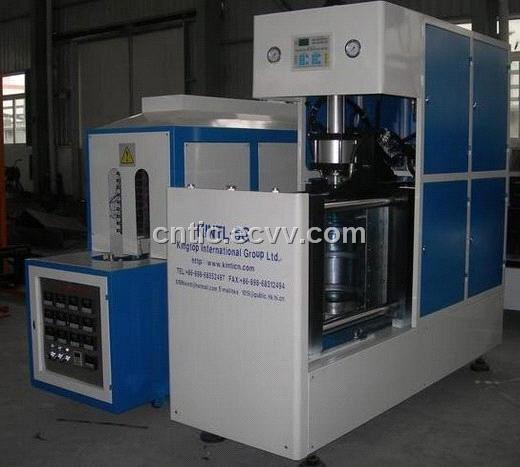

5 Gallon bottle blowing machine, semi-automatic

Detailed Product Description

Using PET material, KINTL-5G could blow extra-large bottles from 5L to 5 gallon volume. Our KINTL-5G is designed to produce high quality water drums at very competitive prices. It uses high quality electrical and pneumatic parts imported from Germany and Japan to ensure stable and effective work. The complete production line for making 5 Gallon PET bottle manufactured by our factory includes:
1.)Main blow molding machine 1 unit
2.)Preform Preheater 1 unit
3.)Voltage stabilizer ( 50KW) 1 set
4.)Chilling type air dryer(with built in rear/front filter) 1 set
5.)Low pressure air compressor 12.5Kg/0.8M3 1 set
6.)High pressure air compressor 30Kg/0.7M3 1 set
7.)Blow mould for 5 Gallon bottle 1 cavity 1 unit

Product Feature
MAIN BLOWING MACHINE
SIEMENS PLC controller. FESTO hydraulic elements, valves and pipes. MISHUBICH VVVF motor. The mould clamping system design is adopted by the advanced toggled lock design producing strong clamping force. The mould thickness can be adjusted by gear-turned belt automatically. On the blowing base of machine, an automatic moving device is assembled.
PREHEATER
The preheater is an infrared heater. When the preforms being heated in the infrared heater by circulation movement, they can also be rotating independently. Inside the preheater, there are 22 holding heads for the preforms and 12 infrared pipes providing 12 zones of different heating temperature. It ensures accurate temperature at each zone pipe without fluetuation, guarantee high percentage of perfect end products

Product Specification / Models
TOTAL POWER OF THE WHOLE SYSTEM IN KW. 22.5kw
TOTAL POWER CONSUMED BY PET BLOWING MACHINE IN KW. 3
POWER CONSUMED BY THE PREHEATER IN KW. 7.2kw/220v
TOTAL POWER CONSUMED BY THE TWO AIR COMPRESSORS
(HIGH PRESSURE AND LOW PRESSURE). 7.5kwx2
PRODUCTION CAPACITY
400BPH FOR 5L BOTTLE
90BPH FOR 5 GALLON BOTTLE

Application
An ideal equipment to make big bottles like 3 or 5 Gallon bottle which is put on water dispensor at home or in office.
