Please follow these steps
1. Please recharge the portable power supply before use.
Plug the AC adapter into outlet,then connect it to portable power supply USB socket. The charge indicate LED is bright while charging and it will change to flash when the battery is fullThe recharge time is about 3 hours.
2. Connect the connector adapter to extended cable and the other side of extended cable connect to portable power supply DC OUT socket.

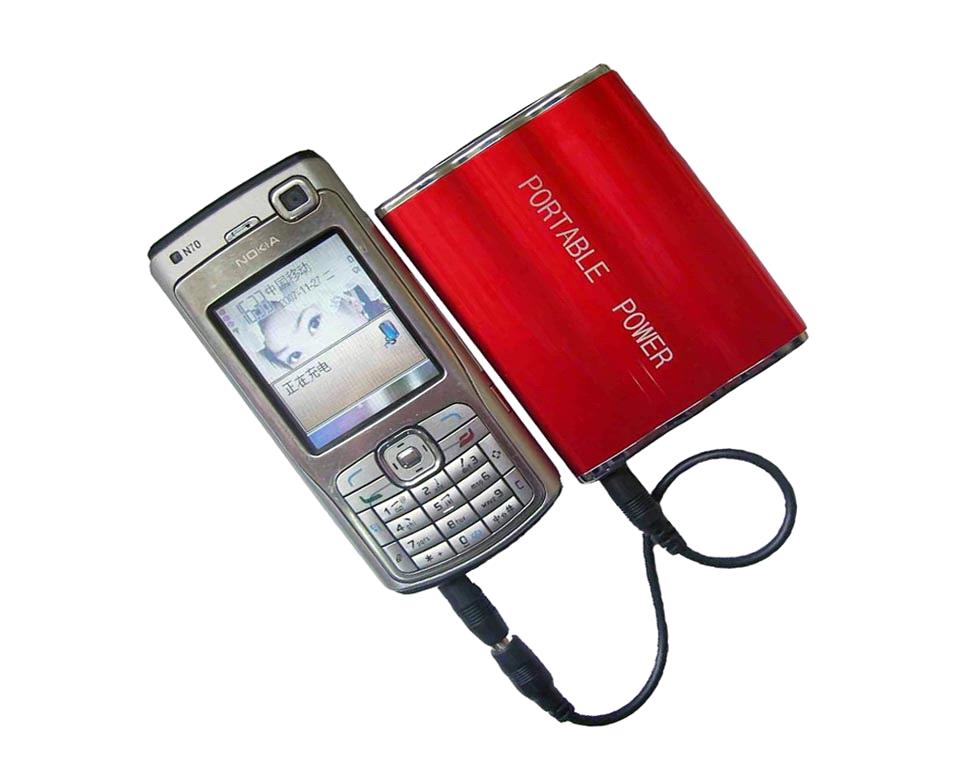

3. Connect the connector adapter to mobile phone or other digital products.
4. Now it is charging. You can use your digital products while charging.
5. If the portable power supply can not work normally in the instance that the connector adapter and all connecters are right,please add the current controller which come with the portable power supply between extended cable and connector adapter
6. Built in battery electric energy indicator
Press button MODE one time,the 3 indicator LEDgreen color will show the built in battery electric energy. The electric energy is empty when no LED be bright; The electric energy is 30% when one LED be bright; The electric energy is 70% when two LED be bright; And the electric energy is full when three LED be bright.
7. Select charge voltage
This product provide 3 kinds of output voltage to suit different digital products.
Press the button MODE
One timeelectric energy indicatorgreen color LED indicator ;
Two timesselect 5.5V(5.5V red color indicator LED be bright),fits for the product its charge voltage under 5.5V;
Three timesselect 9V(9V red color indicator LED be bright),fits for the product its charge voltage between 5.5V and 9V;
Four timesselect 12V(12V red color indicator LED be bright),fits for the product its charge voltage between 9V and 12V.
Five timescut off.
PRODUCT PERFORMANCE
1. Smart charge functionStage charge,prolong battery work life
2. Temperature compensator function,heat adjust and heat cut off function
3. PWM Pulse control constant voltage
4. Smart protection functionover charge,over discharge,over load,reverse,short circuit,lightning proof
5. 3 step voltage adjust to comply with different digital products
6. LED indicate built in battery electric energy
PRODUCT SPECIFICATION
1. Built-in battery3.7V,3000mAh high capacity polymer Li-ion battery
2. Output voltage5.5V / 9V / 12V
3. Output current1800mA/ 1500mA/ 1000mA
4. Full recharge time(AC adaptor)3-4 hours
5. Work time(After full recharge)3-5 hours
6. Work liftno less than 500 cycles
7. Work temperature-30 ~ 50
8. Dimension86 X 69 X 17 MM
9. Weight112g
FITS FOR
Mobile phone
Digital camera
PDA
PSP
Mp3
Mp4
IPOD
DV
ANNOUNCEMENT
1. When the charge indicator LED becomes to flash,please cut off the AC power in time.
2. Please don't use the connector adapter not matching the digital product to charge your digital products.
| Place of Origin: | Shenzhen in China |
| Model No: | G301 |
| Brand Name: | OEM |
| FOB Price: | 8-50 USD FOBshenzhen |
| Payment Terms: | T/T(Bank Transfer), |
