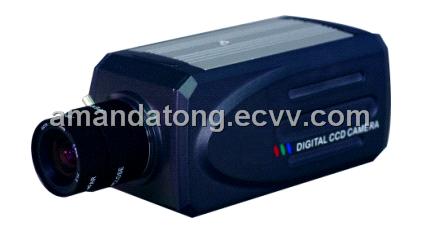

CCTV Box Camera B02 Series

Detailed Product Description

MODEL	B02-1P	B02-2P	B02-1Y	B02-2Y	B02-3Y	B02-4Y
Image Sensor	1/4″SHARP CCD	1/3″SHARP CCD	1/4″SONY CCD	1/3″SONY Super HAD CCD	1/3″SONY Super HAD CCD	1/3″SONY Super HAD CCD
Signal System	3.6mm×2.7mm	4.9mm×3.7mm	3.6mm×2.7mm	4.9mm×3.7mm
Signal System	PAL/NTSC
Effective Pixels	PAL:500(H)×582(V); NTSC:510(H)×492(V)				PAL:752(H)×582(V); NTSC:768(H)×494(V)
Horizontal Resolution	420TV lines				480TV lines	535TV lines
Lens Mount	CS/C Mount (C Mount adaptor option)
Auto Gain Control	ON/OFF switch able
Backlight Compensation	ON/OFF switch able
Electronic Shutter	ON/OFF switch able
S/N Ratio	More than 48dB (AGC OFF)					More than 50dB (AGC OFF)
Minimum Illumination	1.0 Lux/F1.2	0.8 Lux/F1.2	1.0 Lux/F1.2	0.8 Lux/F1.2
Shutter Speed	1/50(1/60)～1/100，000sec
Auto Iris Lens	VIDEO/DC switch able
White Balance	Auto tracking white balance
Sync. System	Internal
Video Output	1.0Vp-p 75Ω（BNC）
Power Consumption	Less than 2.8W
Video Out	VIDEO OUT(BNC)
Power Consumption	DC 12V
