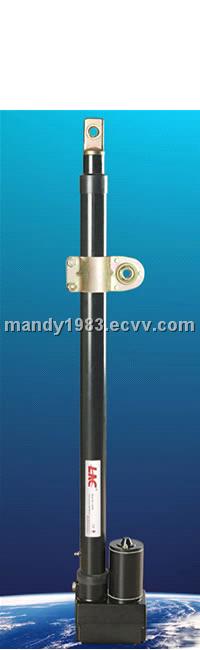

actuator(LACQ+)

Detailed Product Description

Features:

Adjustable stroke

Reed sensor

Acme screw

Self-locking,Water & dust resistant

Enhanced antirust quality

High performance & service life

High precision,Heavy duty bracket and static load capacity

Spec.:

Static Load: 5,390N

Load capacity: 2,450N

Dynamic load: 3,430 N

Speed(Non-load): 7.8mm/sec.

Resolution: 1.26 pulse/mm

Load current: ≤2.5A

Option:

Stroke length18"/24"/ 36"(inch)

Voltage12/24 /36 VDC

Sensor type : Reed

Drive screw : Acme

Rating:

Operating temperature: from -30 to 50

Place of Origin:	Guangdong in China
Model No:	LACQ+
Brand Name:	LAC
Payment Terms:	T/T(Bank Transfer),Western Union,
Minimum Order:	Piece/Pieces 10
Supply Ability:	Piece/Pieces\|15000\|Month
Package:	1232014.7(cm) / Weight: 10.4 kgs
Delivery Time:	15 days
