high speed shuttleless Velcro machine(taiwan technology)

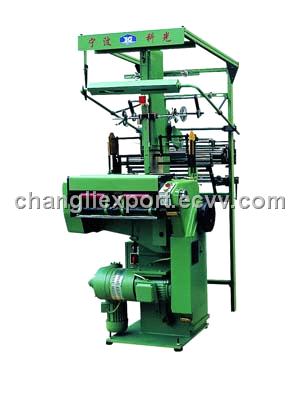

KGF-855A High Speed Shuttleless Velcro Machine

Features:

1) The Yarn feeder has an integrated wall-panel structure and runs stably.
2) The Belt is very easy to adjust.
3) The Front six flanges matched with special triangle healed yarn and hole producing flange to knit smooth side and rough side.
4) The Four flanges in the tail are the normal double-hole healed yarn gauges.
5) The Two flanges in the middle are interlayer,which assist to guide.
6) When knitting the smooth side, you should fix an electric heating finalizing device additionally to finalize the smooth side of knitted goods directly.
7) Double speed motor can move slightly when the knitted goods are being adjusted and it can stop the machine promptly in the event of knitting yarn breakdown at high speed.

Main technical data：

Number of knitted strips :2

Max. scope of the reed :135

Woof density :32-73

Motor power:1.5kw

Number of flanges:12

Rotation speed :800rpm



KGF-855B High Speed Shuttleless Velcro Machine

Features:

1) The yarn feeder has an integrated wall-panel structure and runs stably.
2) The belt is very easy to adjust.
3) The front six flanges are matched with special triangle healed yarn and hole producing flange to knit smooth side and rough side.
4) The four flanges in the tail are only the normal double-hole healed yarn gauges.
5) When knitting the smooth side, you should fix an electric heating finalizing device additionally to finalize the smooth side of knitted goods directly.
6) Double speed motor can move slightly when the knitted goods are being adjusted and it can stop the machine promptly in the event of knitting yarn breakdown at high speed.

Main technical data：

Number of knitted strips :2

Max. scope of the reed :135

Woof density :32-73

Motor power:1.5kw

Number of flanges:12

Rotation speed :800rpm
