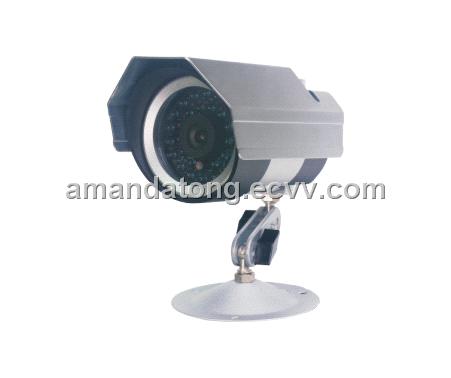

CCTV Waterproof Camera W-IR0130B Series

Detailed Product Description

Model	W-IR0230-1P	W-IR0230-1Y	W-IR0230-2P	W-IR0230-2Y	W-IR0230-3Y	W-IR0230-4Y
Image Sensor	1/4＂SHARP	1/4＂SONY	1/3＂SHARP	1/3＂SONY		1/3＂SONY Super HAD CCD
Signal System	3.6mm×2.7mm		4.9mm×3.7mm
Signal System	PAL/NTSC
Effective Pixels	PAL:500(H)×582(V); NTSC:510(H)×492(V)				PAL:752(H)×582(V); NTSC:768(H)×494(V)
Horizontal Resolution	420TV lines				480TV lines	535TV lines
Lens Mount	3.6 mm ,6mm,8mm, Selectable
Shutter Speed	1/50(1/60)～1/100，000sec
S/N Ratio	More than 48dB (AGC OFF)
Minimum Illumination	0Lux(infrared Lamps Turn on)
Video Output	1.0 Vp-p 75Ω（BNC）
Power Consumption	DC12V (When the infrared lamps ,turn on maximum electricity is 400mA)
LED	￠5X30 PCS
Infrared Wavelength	850nm
Irradiation Distance	30m
