SMD LED Light Bar
Advantages:
Easy connection,
detachable every 3 LEDs. The detachable point is marked by a black line
on the PCB board. After cutting, both parts can still work
independently under 12V DC power, and can still be jointed together by
wires and snap-in connectors
Only parallel connection is allowed
Easily can be connected by cable connector in series end by end
Available colors: red, green, blue, amber, white, RGB tri-color, etc.
Applications:
Edge lighting of transparent or diffused materials
Path and contour marking
Emergency / Rescue Signs
To couple light into transparent to diffused glass
Basic Technical Data:
Harmonious light with wide viewing angle 100~120 degrees
Interconnecting wire length: 100mm
Size of the smallest separable 3-LED unit (L×W) 46mm × 8mm (single color), 56mm × 10mm (RGB tri-color)
Size of the whole strip (L×W×H): 480mm × 8mm × 6mm (single color), 573mm × 10mm × 6mm (RGB tri-color)
1 W High Power Light Bar
NEW
Advantages:
Available in red, green, blue, yellow, white
Wide viewing angle 140 degrees
Applications:
Indoor use for decoration
Basic Technical Data:
Standard length: 0.57 meters / 12 LEDs
Size (L×W): 570mm × 20mm
Operating current: constant 350mA
Input voltage: 85V ~ 265V AC
0.5W High Power Light Bar
NEW
Advantages:
Use 0.5w SMD LEDs
Low voltage operation
Long life, maintenance free
High intensity, low heat generation
Applications:
Channel letter lighting
Illuminating signs
Basic Technical Data
Standard length: 0.5 meters / 15 LEDs
Size (L × W): 500mm × 13mm
Operating voltage: 12V DC
Operating current: 1750mA

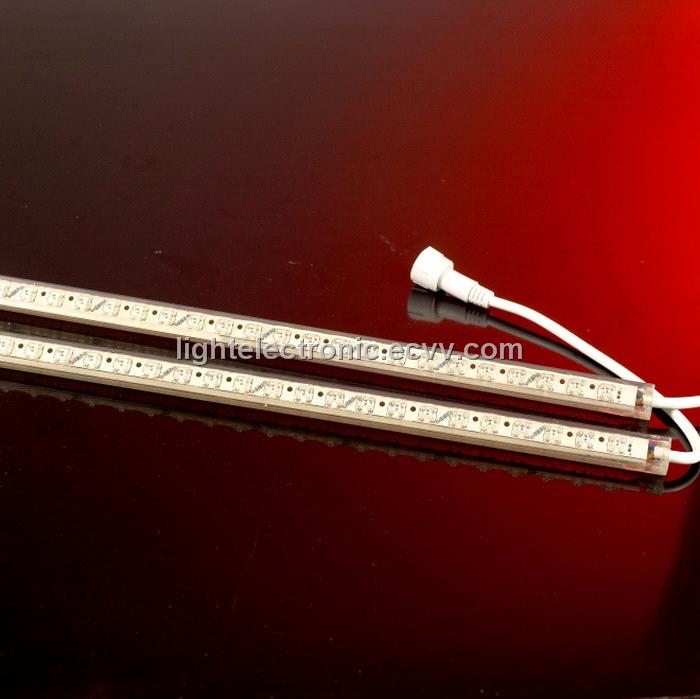

Waterproof LED Light Bar
NEW
Advantages:
Available in full range of single colors and RGB full color
Available in different lengths: 0.4m, 0.5m, 0.8m, 1m single color and 0.3m for RGB full color
Various choices for viewing angles from 40~ 120 degree
Low input voltage: 12V DC or 5V DC
Totally waterproofed
Applications:
Backlighting for larger size advertising signs
Elegant interior decoration
Nice accent lighting and lamps
Landscape outlines, etc.
Signal lighting
Basic Technical Data:
Operating voltage: 12V DC (RGB tri-color used 5V DC)
Operating current: 150~180mA (0.4m, 25-LED), 170~200mA (0.5m, 30-LED), 340mA~400mA (1m, 60-LED)
| Place of Origin: | Guangdong in China |
| Model No: | WLB001 |
| Brand Name: | LE |
| FOB Price: | 10-100 USD Shenzhen |
| Payment Terms: | T/T(Bank Transfer), |
| Minimum Order: | Meter 100 |
| Supply Ability: | Meter|1000000|Month |
| Package: | Standard Export Carton |
| Delivery Time: | 2 weeks |
