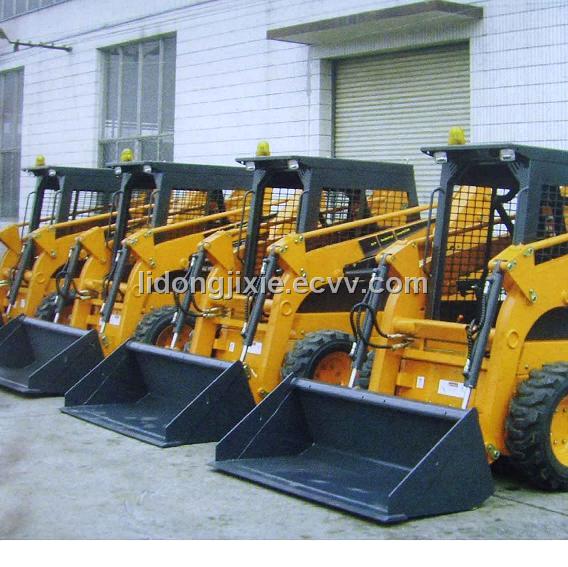

skid steer loader

MAIN SPECIFICATIONS

Bucket capacity:0.47m³

Tipping:1700kg

Bucket breat-out force:1500kg

Max lifting force:1300kg

Speed:0-11.2km/h

Operating weight with standard bucket:2850kg

H1.Max height:3970mm

H2.Height to bucket hinge pin:2960mm

H3.Dump height:2150mm

H.  Height to top of cabin:2090mm

L.  Overall length with bucket:3450mm

L1.Dump distance:750mm

L2.Overall length with with bucket:2420mm

L3.Wheelbase:991mm

L4.Rear axle centerline to back bumper:1050mm

B.  Bucket width:1680mm

B1.Tread:1460mm

B2.Overall length to outside of tyre:1710mm

D.  Ground clearance:210mm

R.  Clearance circuit front:2090mm

a1. Dunp angle at max height:37°

a2. Max attachment rollback when bucket on ground:31°

a3. Angle of departure:23°

Noise inside cabin:≤92dB

Nosise outside cabin:≤106dB

ENGINE INFORMATION

Engine type: POWERPLUS PE50

Rated power:50HP

Rated speed:2650rpm
