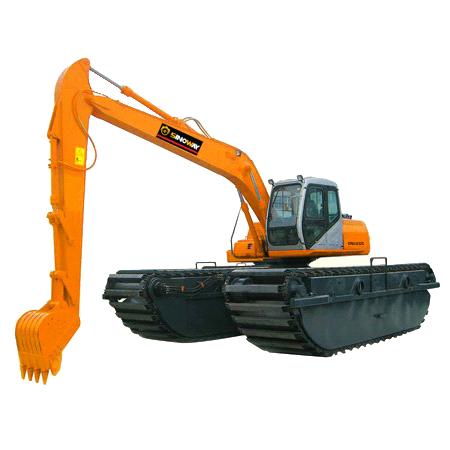

Amphibious Excavator (SWEA220 )
Main specification
Operating weight
26000Kg
Bucket capacity
0.8M3
Stick digging force
97.64KN
Bucket digging force
122.85KN
Slewing speed
11rpm
Engine
Model
Mitsubishi 6D34
Type
Turbo charged with inter-cooled
Rated Power
114Kw/2050rpm
Max.torque
590N.M/1400rpm
Displacement
5.86L
Hydraulic System
Max. flow rate
20L/min
Rated working pressure
32Mpa
Traveling & Chassis
Max. traveling Speed
3.42km/h
Grade ability
20°
Min. Ground clearance
1192mm
Ground pressure
0.14kg/cm2
Track shoe width
1508mm
Track gauge
3847mm
Track length on ground
Operating scope
Stick length
2912mm
Maximum digging reach
9925mm
Maximum digging reach on ground
9537mm
Maximum digging depth
5704mm
Maximum vertical digging depth
5125mm
Maximum cutting height
10577mm
Maximum dumping height
7810mm
Minimum front slewing radius
3554mm
Dimension
Overall length
10700mm
Overall width
5570mm
Overall height
4310mm
Service capacities
Fuel tank
296L
Hydraulic oil tank
