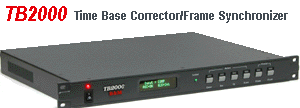

Wide Band Time Base Corrector & Synchronizer

TB2000
Wide Band Time Base Corrector & Synchronizer
TB2000 is a 8-Bit wide band TBC/Frame synchronizer.
TB2000 has composite and S-Video input and output with AGC and CGC feature.
Adjustable video brightness, setup, chroma, H phase, SC phase.
TB2000 also can be Gen Lock by the external video source or working stand alone.
Provides freeze frame and field feature.
Provides standard color bar output.
Video Specification Sample Precision  10 Bits Composite / S-Video
Sample Frequency 13.5MHz CCIR601
Video Processing 4:2:2
Frequency Response 5.8MHz
Signal to Noise Ratio > 60 db (Weighted)
Differential Phase < 1 degree
Differential Gain <1%
K Factor (2T Pulse) <1%

For our product continue to be progress, B&M will have right to change the products' specifications without notice.

Place of Origin:	SICHUAN CHENGDU in China
Model No:	TB2000
Brand Name:	B&M
Package:	cartons
