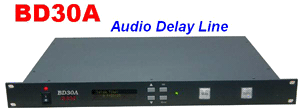

Digital Audio Delay Line

BD30A Series
Digital Audio Delay Line
BD30A is a high performances 24-Bits audio delay line. The delay time should be set up to 30 seconds (60 seconds option).
BD30A could be friendly used in audio talk show, satellite signal transmission or virtual set environments. It is very useful to resolve the Lip Sync problems.
Features
? Digital or analog stereo balance audio input and output
? Mute and Bypass mode enabled
? RS232 remote control optional
? Frame by frame adjustable

Audio Specifications
Sample Precision 24 Bits
Sample Frequency 48 kHz
Frequency Response 20Hz ~ 20kHz
THD+N  0.03% (+4Dbu)
Channel Isolation 81dB
Signal to Noise Ratio  > 90dB
Maximum Input Level + 20dBU


For our product continue to be progress, B&M will have right to change the products' specifications without notice.

Place of Origin:	SICHUAN CHENGDU in China
Model No:	BD30A
Brand Name:	B&M
Package:	cartons
